Reverse Engineering the Macintosh SE PCB & Custom Chips for 1:1 reproduction

quorten

Well-known member
Also, I see I0 is labeled as Not Connected (NC) but it is still referenced in the  of the OE equations !FCLK.oe, !B6.oe, and !IPL0.oe equations.

Simplifying !B6.oe by hand looks like this.

Code:
!B6.oe =               !WRDATA & !ENBL1 & !PA4 & !CLK & !PA3 & !RTxCB & !OE & !RTxCA & !OutA & !IPL0 & !ENABLE_L & !ENABLE_U & !FLOPPY_WR & !FCLK
       # !PB6 & !IRQ &  WRDATA & !ENBL1 & !PA4 & !CLK & !PA3 & !RTxCB & !OE & !RTxCA & !OutA & !IPL0 & !ENABLE_L & !ENABLE_U & !FLOPPY_WR & !FCLK;


!OutA.oe is fairly well simplified as presented.



techknight

Well-known member
This is what the script I use does: (This isnt a Mac, but yet a different 68K computer)

Code:
module top (
    input IACK,
    input RW,
    input REROM,
    input AS,
    input A12,
    input A13,
    input A14,
    input A15,
    input A16,
    input A17,
    input A18,
    input A19,
    input A20,
    input A21,
    input A22,
    input A23,
    output ~q7,
    output ~q6,
    output ~q5,
    output ~q4,
    output ~q3,
    output ~q2,
    output ~q1,
    output ~q0
);

assign ~q7 = (RAM Select)
  (~IACK & REROM & ~AS & ~A21 & ~A22 & ~A23)
;

assign ~q6 = ($FDF000 to $FDFFFF) (Peripheral Select)
  (~IACK & REROM & ~AS & A12 & A13 & A14 & A15 & A16 & ~A17 & A18 & A19 & A20 & A21 & A22 & A23)
;

assign ~q5 = ($FD0000 to $FD3FFF) (EEPROM Select)
  (~IACK & REROM & ~AS & ~A14 & ~A15 & A16 & ~A17 & A18 & A19 & A20 & A21 & A22 & A23)
;

assign ~q4 = (External Peripherals Enabled)
  (~A21 & ~A22 & ~A23) | (RAM Space)
  (A17 & A18 & A19 & A20 & A21 & A22 & A23) | (ROM Space)
  (~A14 & ~A15 & A16 & A18 & A19 & A20 & A21 & A22 & A23) | (EEPROM Space)
  (A12 & A13 & A14 & A15 & A16 & A18 & A19 & A20 & A21 & A22 & A23) | (Peripheral Space)
  (AS) |
  (~REROM) |
  (IACK)
;

assign ~q3 = (Unused)
  (~IACK & REROM & ~AS & ~A12 & A13 & A14 & A15 & A16 & ~A17 & A18 & A19 & A20 & A21 & A22 & A23)
;

assign ~q0 = (ROM Select) ($FE0000 When Not REROM, $000000 when REROM)
  (~IACK & RW & ~AS & A17 & A18 & A19 & A20 & A21 & A22 & A23) |
  (~IACK & RW & ~REROM & ~AS & ~A17 & ~A18 & ~A19 & ~A20 & ~A21 & ~A22 & ~A23)
;

endmodule


Kai Robinson

Well-known member
Here you go. The pin assignments are as the PALASM:

/* Dedicated input pins */

pin 1   = I0; /* NC*/
pin 2   = PB6; /* PB6 */
pin 3   = IRQ; /* IRQ */
pin 4   = WRDATA; /* WRDATA */
pin 5   = ENBL1; /* /ENBL1 */
pin 6   = PA4; /* PA4 */
pin 7   = CLK; /* CLK INPUT*/
pin 8   = PA3; /* PA3 */
pin 9   = RTxCB; /* /RTxCB */
pin 11  = OE; /* OE */

/* Programmable output pins */

pin 12  = RTxCA; /* Combinatorial output */
pin 13  = OutA; /* Fixed high output w/ output enable */
pin 14  = IPL0; /* Combinatorial output w/ output enable */
pin 15  = ENABLE_L; /* Combinatorial output */
pin 16  = ENABLE_U; /* Combinatorial output */
pin 17  = FLOPPY_WR; /* Combinatorial output */
pin 18  = B6; /* Fixed high output w/ output enable */
pin 19  = FCLK; /* Combinatorial output w/ output enable - FCLK on BBU Pin 44 */



View attachment glu.bin



techknight

Well-known member
I will have to double-check, but I dont know if thats actually a clean dump. if an OE pin isnt active, then wherever that bit lies in your dumper, everything should be cut off until that pin activates. But in this dump, I dont see that.



Kai Robinson

Well-known member
Hmm - OE is permanently pulled low via R12 (150Ohm) - doesn't connect to anything else. With the HAL/PAL16L8 - if OE ever goes HIGH, then everything is disabled.


Last edited by a moderator:

techknight

Well-known member
well im gonna crunch it here and see what comes out the other end. How did you have your Input pins wired in correlation to how you dumped the PAL bin?


Last edited by a moderator:

techknight

Well-known member
Ohh, ok.... whoops :)

if I could get a list of known inputs from the I/O side, I can route the properly to the truith output for the python script to work.


Last edited by a moderator:

Kai Robinson

Well-known member
The pins are connected as such:

1 i0 to NC
2 i1 to pb6 on 6523
3 i2 to irq on 53c80
4 i3 to wrdata on IWM/SWIM
5 i4 to /enbl1 on IWM/SWIM
6 i5 to pa4 on 6523
7 i6 to 16M output from osc
8 i7 to pa3 on 6523
9 i8 to /RTxCB on 85C30 & BBU pin 40
10 GND
11 i9 to /OE (Pulled LOW through R12)
12 o0 to /RTxCA on 85C30
13 o1 to Output A on 26LS32 - U4C
14 o2 to /IPL0 on BBU
15 o3 to /ENABLE on Lower Drive via filter
16 o4 to /ENABLE on Upper Drive via filter
17 o5 to FLOPPY_WR on all drives
18 o6 to NC
19 o7 to fclk on IWM/SWIM & BBU pin 44
20 VCC



Kai Robinson

Well-known member
Also - upon further signal inspection the 338-6523 is NOT likely to be a 6523 TPI as originally thought - the pins match up to the 6522 config instead, some obfuscation on Apple's part but would make the most sense since the 6522 is used in everything else, and there's nothing being used on what should be Port C, IRQ is connected to the other IRQ pins, R/W connected to R/W etc. I'd love to be able to edit my original post. At least that means one less custom chip to use - you can indeed use a brand new WDC 65C22N instead.



Kai Robinson

Well-known member

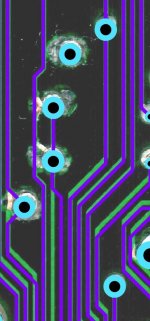

@cheesestraws @PowerMac_G4 - I HAVE DISCOVERED A TRACE ISSUE!

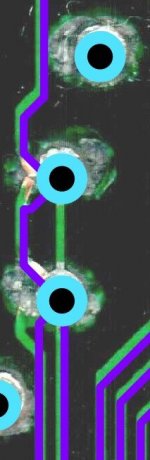

Look here - you'll see i've connected stuff that has no business being connected. I accidentally pistook a trace going into a pad - turns out that i'd actually shoved the trace out the way while desoldering. I just verified against other SE boards - see the original, and the fix. Can cut the trace and patch direct with a bodge wire :)

Annotation 2020-08-15 165223.jpg




Kai Robinson

Well-known member
....aaand there's a short circuit between the power planes in all the board revisions. CANCEL YOUR BUILDS, DESOLDER. I'll send out another batch of boards :(

FFS - its only on the split power plane at the back - can't locate it...c8 links to gnd and power, and even without a capacitor in, the planes are linked.


Last edited by a moderator:

Kai Robinson

Well-known member
However, some troubleshooting later (ie, desoldering all power from the rear I/O by removing the inductors...)

IT'S (kinda) ALIIIIIVE!!!!
