jajan547
Well-known member
To begin I would like to first say I'm ecstatic to have this board and I plan on putting it in a 7500 case (sadly I have no case or ROMs for this board) and hopefully tracking down or with the help of someone here creating a new ROM SIMM. This is pretty unique in that it is an EVT which don't typically show up in the wild. This board has a date of 1994 TNT BOARD REVISION 820-0564-05, EVT-3. This board also came with an external video connector board I assume this to also be a prototype as it's markings say "AV HOISDEN" with a part number of 820-0609-01 dated 1994. I have added photos below and will elaborate further....
![Screen Shot 2022-09-15 at 9.38.35 PM.png Screen Shot 2022-09-15 at 9.38.35 PM.png](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46628-1b0f885941866997c5c50b068688be1d.jpg)
![Screen Shot 2022-09-15 at 9.38.51 PM.png Screen Shot 2022-09-15 at 9.38.51 PM.png](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46629-cdd572601023555ada3caccf088abb31.jpg)

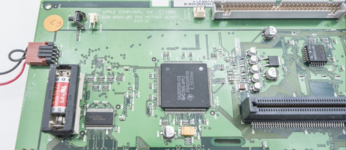

The board as we can see has a somewhat odd layout compared to final units, things clear to me such as apparent reset and interrupt switches, missing or different connectors, no on board ROMs.
![Screen Shot 2022-09-15 at 9.39.18 PM.png Screen Shot 2022-09-15 at 9.39.18 PM.png](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46630-3612885a20caf3b023405dc358275686.jpg)
![Screen Shot 2022-09-15 at 9.39.30 PM.png Screen Shot 2022-09-15 at 9.39.30 PM.png](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46631-7fca469aabd32b6034643d4bd380f744.jpg)

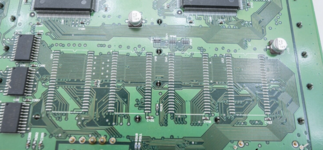

I know you see the weird chip with wires more on that further down.... As we can see no on board ROMs are present
![tempImageIscYgI.jpg tempImageIscYgI.jpg](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46633-62a1bf26bc99c59cfec123bba4fe25ec.jpg)
![tempImage3AkRqu.jpg tempImage3AkRqu.jpg](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46634-e03745a7903c9744fd49f98bfba6201c.jpg)
Apparent Reset and Interrupt Switches
![tempImage3x1dJV.jpg tempImage3x1dJV.jpg](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46635-c01e5bb30c6a3740c3d74be95d1b6072.jpg)
![tempImagejaybSF.jpg tempImagejaybSF.jpg](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46648-ab9ce6071317deced58cff31a71f2dc2.jpg)
![tempImageeFqbaI.jpg tempImageeFqbaI.jpg](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46636-c9a4e5d54c9a084dac2eb99b6cfebb04.jpg)
![tempImagekQ0XeB.jpg tempImagekQ0XeB.jpg](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46637-b521943609635afd232527f16a80be06.jpg)
![tempImageFdqOk5.jpg tempImageFdqOk5.jpg](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46638-b3d4eb514a6ad185c0f55eaa6f316ac1.jpg)
Serial Number is *FC506VJNEVT*
![tempImagemtWMD0.jpg tempImagemtWMD0.jpg](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46639-f8c3d9d4b50eee8f72499482309d02c6.jpg)
EGRET appears to be a 341S0060
![tempImageY8wzLJ.jpg tempImageY8wzLJ.jpg](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46640-4bee52fd6d4ac3c6d174daf36edc08e7.jpg)
![tempImageJeFTGB.jpg tempImageJeFTGB.jpg](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46641-8b77fc81b98384ac1187bdb5ce7afde6.jpg)
![tempImageGztgYO.jpg tempImageGztgYO.jpg](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46642-c2fe68912d542be73342e17d8dbaf6f4.jpg)
Better view of more chips on Board
![tempImageVye2cf.jpg tempImageVye2cf.jpg](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46643-db2fe464c4b709999b9ac24c341aa7fc.jpg)
![tempImageE767Z3.jpg tempImageE767Z3.jpg](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46644-8db05b40473d544d1cb28c9eda17724e.jpg)
Now for the chip you all are probably very interested in it appears Apple had issues with this chip and decided to try hijacking it or piggybacking a chip.
As can be seen many bodge wires done by an Apple Engineer are attached to a 44 pin PLCC socket which connect to an AMD MACH210A-10JC. I assume there's a great interest on reading this chip and what's on it I currently don't think I have a programmer (all I have is a TL866ii Plus) that can read this chips contents (correct me if I am wrong). I would love to extract whatever information is this little chip but I want to go about it the right way, if you're interested in helping PM me
.
Now onto the little Video Board "AV Hoisden" (820-0609-01)
![tempImage9enpJ5.jpg tempImage9enpJ5.jpg](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46645-1640c3caf7da1d4f863f5526f00694dc.jpg)
![tempImage1WBMwA.jpg tempImage1WBMwA.jpg](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46646-acb4cd65560e31500fc26e16857dd064.jpg)
![Screen Shot 2022-09-15 at 9.39.51 PM.png Screen Shot 2022-09-15 at 9.39.51 PM.png](https://forumbucket.us-southeast-1.linodeobjects.com/data/attachments/46/46647-84a22231b2080acda9bca11888015f69.jpg)
Things I still need are a donor 7500, a ROM SIMM, a Recap, and to of course move the ticking time bomb that is a Maxell Battery. I hope you guys enjoyed this. If you have any questions, ideas, feedback, or anything please feel free to PM me or comment below. Im interested in learning more about this.
