PowerBook 550c

[Charadis]

Hey, all! I've been lurking around here for a while, enjoying all of the acquisition posts and knowledge from the different subgroups of this community. Reading about the stories posted here really got me excited about vintage hardware from one of my favorite tech companies. I wanted to make sure my first post would be on the "Apple" of my eye.

I've been hunting for a PowerBook 550c for a few years, and lately, the time has been ripe. I recently acquired one on Yahoo! Auctions, which had the 100Mhz (or 99MHz?) PPC upgrade and 32MB module installed. I also found a PCMCIA Rev C module and a NUpowr 500 167MHz 8MB daughterboard/set.

There were a couple issues: when I picked up the package, I was so excited that I had to open it right there in my car outside on the lot. I was worried about the long trip it had to take overseas that it could be damaged, and I did not insure the package. It was dark, but I had the Map light on, and looking at the unit took my breath away. It was a sight to behold. As I played with the "feet," I ended up snapping the left side foot trying to pop it out. Some JB Wield/superglue remedied that, and has held up very very well so far!



Also, the right side battery had corrosion that ruined the battery contacts inside. I'm just glad the unit still functioned, but I wanted a permanent solution. I bought a 520 on eBay recently, and transplanted the right side battery contact module over to the 550c. The transplant was a success, and I successfully revived one of the batteries that the unit came with using the Intelligent Battery Recondition and EMM VST program after reading here on some of the past experiences of users that posted previously. This was merely just so I had some kind of verification that my soldering work was not crap







Here is a picture of the current setup. I am truly ecstatic about this new addition to my Mac fam, and I truly appreciate the wealth of knowledge I've been reading here on the forums.



I am still waiting for a IDE -> CF card adapter. The drive that was included in my 550c was a 1GB Apple-branded IBM drive connected to a SCSCI -> IDE attachment by ADTX. Enjoy the pics! I have quite a few more, but having trouble loading them up here. If I can load more later, I post an update!

Cheers



[Charadis]

Finally figured out the problem; lowered the size of my pic files.

Here are some pics of the battery connector swap and board comparison, 520 vs 550c:













Here is a comparison of the 520 daughter card, the PPC daughter card from the 550c, and the NUpowr 167MHz daughter card (now currently inside of the 550c):





Here is the installation of the card into the system, and after uploading the NUpowr extension (otherwise, the system seems to recognize the daughter card processor as a 133MHz PPC on Mac OS 8.6):



I restored one of the batteries, just to verify that the right battery connector soldering job wasn't total crap. (it wasn't)



Finally, here are pics of the HDD adapter inside the 550c, the PCMCIA module I acquired, and the NUpowr set I purchased recently:







Okay, this is a lot of pictures! Sorry! :'-)



[MOS8_030]

Howdy! Welcome!

That's a great score and some nice pix.

That is the BlackBird to have!



[Charadis]

Howdy! Welcome!

That's a great score and some nice pix.

That is the BlackBird to have!

Hey, thanks a lot! bw

Haha, thanks, I'm very proud of it indeed! Still a work in progress, but it has been keeping me busy so far



[CC_333]

Wow! That's like the holy grail of the PowerBook 500 series there! Great find!!

I think it actually looks nicer than the normal ones.

Now I want one too []

c



[Bolle]

Too bad it did not come with the original 040 processor board.

Nevertheless a great find.



[Charadis]

Wow! That's like the holy grail of the PowerBook 500 series there! Great find!!

I think it actually looks nicer than the normal ones.

Now I want one too []

c

Thanks! It's been my "Holy Grail" for ages.  I seem to find them pop up on auction every now and then, but decided this was the right time...and I'm a lot more comfortable using proxy buyers now. And I learned about a service called "DHL Express" that gets packages to you like. Fast. Stupidly fast (36 hours, no lie).

I agree, I wanted the 520/540 variants back in my younger days until I learned about the 550c when I started getting into vintage Macs. Pictures do it no justice.



[Charadis]

Too bad it did not come with the original 040 processor board.

Nevertheless a great find.

Haha, that was the thing that bugged me at first!  :-/  On the other hand, I was planning to upgrade the processor, but it definitely would have been nice to have the 040 to play with later. I was looking at getting another 550c just for it, but it went way over my budget ($550 if converted to US from Yen...haha, someone had a sense of humor..)



[Charadis]

I forgot to add that while I had the 550c taken completely apart (besides the screen assembly, which I've left intact), I had bought a brand new Global Village 19.2Kbps modem on eBay for the 500 series. I like fixing things to "completion," so I decided to upgrade the 550c and install the modem, even though I have no earthly idea what application I could use for it in this day and age:



I would have been lost without the aid of my TAM that I've had to write installation disks on 3.5" practically on every application I've had to do, whether it was restoring the HDD or loading software. Once I acquired the 8x Panny external drive, things were a lot easier; I realized I could just drop the CD ext file into a boot up disk and use the CD drive even while restoring the HDD.



While I'm in the topic of the TAM, it has been an even larger project for me. I acquired it on auction through a Buy It Now of $600 shipped (I think shipped? I don't remember, but I think so). The seller failed to include the touchpad filler square, which might have slipped off the keyboard during packing, and had to ship afterwards. It wouldn't power on at first; I found a post somewhere here that talked about pressing the reset button on the back of the unit, which, to my amazement, did the trick! However, the CD Drive failed to read disks. Soooooooooooo....



This was the first, but definitely NOT the last time I had to open it up. It was caked with dust inside. This was a bare-bones unit, no upgrades. I assume original RAM stick, which I upgraded later. And I pulled the PRAM battery as soon as I received the TAM. I found a CD drive around the same era built as the TAM, after researching CD drive repair options, and took a chance; it was made for IBM-compatible PCs:



The logic board was very similar, with only small differences. I was hopeful that it was just the laser module that was the problem, as it seemed like everyone with the issue had noted. So I just replaced the laser module:



And maybe one or both of the motors, I think... I also reinforced the ribbon flex cable with electrical tape. The flex on the original had torn at the angle, and I'm not sure if that was due to usage or if I had inflicted that damage on my own. But I definitely wanted to make sure it would not happen to this one:



There was also damage to the CD drive door at the hinges. When I received, it was just the left side hinge. Then, after the laser repair, the right side clutch/whatever had snapped off from inside. I repair with JB Wield, but it snapped again. So I used the toughest JB Wield I could find, requiring a 6hr set time and 24hour curing period. I might have layered twice. This was the last repair, and hopefully will not have to revisit ever. Ever ever ever ever EVER again!



Had to use a Dremel to "thin" it from the laser side a bit so it could pass the casing:



And, as you'd know it, the left side broke again. So I used a JB Wield super glue this time to bond it without reopening the unit. Twice, since the first time, glue had seeped into the edge and caused the door to be "stuck" from opening, causing me to chip it off and break it once again:



Then, the elusive "speaker buzz" started occurring. Well, I thought it might have happened due to the subwoofer unit, as I've read online. The commenters suggest tinning the connector because it can oxide over time. Soooooooooo....



I'm going to be honest here. I've soldered quite a few things in my lifetime, and I'm 33 now. But I still don't think my soldering skills are the greatest. So here is my somewhat okay job that I took much much longer than I should have:



When I put the subwoofer unit back together and fired the TAM up, the buzz was still there!! So I disassembled the main unit, at a later time, cleaned the connectors pretty well...with a cloth....and reattached everything back together, praying the buzz would go away. That was it, the buzz was gone. And I wasted a lot of time opening/tinning the subwoofer! But, oh well, at least I future proofed it, maybe? (I don't know...I just need some reasoning to justify it...anyways...)

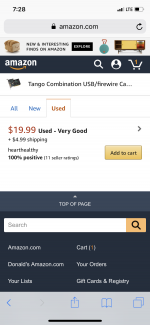

Well, by this time, I'm just hoping nothing else comes up! I did get a Sonnet Tango for a pretty good deal on Amazon.





And I upgraded the HDD to a CF with adapter:



Finally, here is the end result.



I repurposed an old Linksys wireless router into a wireless bridge, which I have the 550c and TAM connected to.



Overall, I'm very happy with the outcome of these projects. I've wanted these two machines for a very long time, and I've even gone a bit further with the TAM than I wholly expected. I can't imagine myself buying another one after all I've been through!! However, I love the machine and, someday, I hope to find a Sonnet Crescendo L2 to boost the usability. I use it almost very often, and since I've discovered Classilla, it feels very "modern" and useful/practical. Especially having to download software for the 550c and create discs, it has been an extremely vital machine to that project.

My PowerBook G3 Wallstreet, which started my vintage Mac interest, is in a briefcase here, and I may need the TAM once more to help with furthering that project. For now, I'm just going to enjoy using the 550c and TAM.



[Machead]

Those are beautiful Macs.



[Charadis]

Those are beautiful Macs.

I wish more of my friends thought the same!   I absolutely love using them



[Byrd]

I wish more of my friends thought the same!   I absolutely love using them

Thanks for posting up all the pics, Charidis - you've certainly kept yourself busy restoring your Macs

The 550c: looks great; I can confirm you can add a 16GB CF drive to the SCSI to IDE adapter (stacked with a 2.5" IDE to CF adapter); don't believe old information which states the HD has to be less than < 2GB.  I consider it to be faster and more elegant option over booting from a PCMCIA to CF adapter in the card cage.

The TAM: also looks great considering it sounded fairly rough around the edges!  How do you find the IDE to CF adapter in it; does it run any faster using the CF card?

JB



[Charadis]

Thanks for posting up all the pics, Charidis - you've certainly kept yourself busy restoring your Macs

The 550c: looks great; I can confirm you can add a 16GB CF drive to the SCSI to IDE adapter (stacked with a 2.5" IDE to CF adapter); don't believe old information which states the HD has to be less than < 2GB.  I consider it to be faster and more elegant option over booting from a PCMCIA to CF adapter in the card cage.

The TAM: also looks great considering it sounded fairly rough around the edges!  How do you find the IDE to CF adapter in it; does it run any faster using the CF card?

JB

I'm glad you enjoy the pictures, Byrd! These have probably taken up a bit longer than I intended, but it has been worth the fun and time referencing from others' past experiences.

I appreciate the information on the SCSI to IDE adapter; I had read about people having trouble getting beyond 8GB CF cards to work, so I had already purchased a 4GB card from eBay. Since 16GB should be fine, I'll try giving that a go when that adapter gets here! I haven't really had much use of the PCMCIA adapter, yet, but I definitely prefer to have the drive internal. I tried a 20MB linear flash PCMCIA card from my 2100, and it freezes the machine instantly. The Sony PCWA-C150 that I have is recognized, however, but tells me that the drivers required are not installed. However, the card icon shows up on the desktop.

Thanks on the TAM; it has definitely needed a bit of work! But it's in much better condition than I had expected it when it arrived. Besides the CD-ROM door breaking every time I look at it!!  The IDE -> CF adapter makes a big difference in my experience. Besides web surfing, everything just loads more fluidly. One big curiosity, however, is that the system will attempt to index the drive when it is not in use for a while, and the index duration shows something like 4-5 hours to finish on Mac OS 9.1...I'm not sure on the exact duration est. The bar hardly moves for a while, but after around 30mins-1hr, it jumps up, and the duration time dramatically drops. I don't know why it has that little hiccup. If the system falls into sleep, however, the Indexing seems to freeze at whatever time it showed. At that point, I just cancel.

The system is still loud without the HDD because of the fan, but I actually enjoy that nice hum. Reminds me that I'm still using a piece of history despite all the changes.

I have a CF in my PowerBook G3 Wallstreet, as well, and in my limited time playing with it, I notice a big difference in loading times. At this point, I'm going to use a CF wherever I can! It is strange, however, that the PB is so quiet without a HDD.



[Charadis]

So I happened to dig out my 3400c "parts machine" tonight, and...that keyboard looks kinda nice.  Wouldn't it be a shame..



..if I took a few keys...



...maybe a few more...



..and do a little swap...



..for...



...a small...



...project?



Hmph. Those look like a couple of regular FrankenBooks



Well. Sure is nice to have a full-size Delete key! I'm just saying



[KnobsNSwitches]

Terrific thread, and great pics. Thanks for sharing!



[EvilCapitalist]

Those are some fine machines you've got there!  Always nice to see someone putting in the work to get a really nice machine in the end.



[Charadis]

Terrific thread, and great pics. Thanks for sharing!

Thanks a lot, I’m glad you enjoyed! I didn’t expect to post as much as I have already. I must credit the iPhone X for being a great camera

Those are some fine machines you've got there!  Always nice to see someone putting in the work to get a really nice machine in the end.

I always love a good project more than just buying something that has had all the work done to it already. And it is always enlightening hearing feedback, like yours, after all the work



[Charadis]

Small tour  bw



[Charadis]

Thanks for posting up all the pics, Charidis - you've certainly kept yourself busy restoring your Macs

The 550c: looks great; I can confirm you can add a 16GB CF drive to the SCSI to IDE adapter (stacked with a 2.5" IDE to CF adapter); don't believe old information which states the HD has to be less than < 2GB.  I consider it to be faster and more elegant option over booting from a PCMCIA to CF adapter in the card cage.

The TAM: also looks great considering it sounded fairly rough around the edges!  How do you find the IDE to CF adapter in it; does it run any faster using the CF card?

JB

I finally got the CF adapter, after nearly a month of waiting for it from overseas. Unfortunately, I can’t seem to get the 4GB Transcend cf to be recognized! I tried a 16GB and 64GB Sandisk cards as well, no dice. I even installed the 4GB into my G3 and initialized it there, but the 550c still doesn’t recognize it  :/



The only card I had any luck with was a Seagate ST1 microdrive I happened to have lying around. It recognizes it, and I initialized it. But it feels pretty slow; spent about 3-4 hours installing Mac OS 8.0 at 8x cd drive speed.

Are there specific cf specs, or brand, I should be trying out?? I ordered a 2GB Transcend cf this morning to test out, but if it still doesn’t work, I’m at a bit of a loss. :/
