PB180 - Loose insert, stuck screw.

[CosmicArchivist]

The left-most insert connecting the screen and bezel assembly to the hinge has come loose from its roots, with its screw stuck firmly inside. With the Powerbook being designed the way it is, I can't disassemble it for other repairs until I take out that screw. I've tried grabbing the insert from the other side with long-nosed pliers, and then trying to turn the screw, but I just can't get enough grip and it's not moving. Do I have any other options, or is it a goner?



[3lectr1cPPC]

I had the same problem with my 170 but was able to get it to grip something and come out. If that didn’t work, my plan was to just operate the hinge until the rest of the standoffs broke, in which case the housing would come apart enough that you could grab the brass insert and remove the screw. This could risk additional plastic damage to other parts, but what option do you really have if any? Not sure.



[GRudolf94]

Apply CA glue to tip of pliers before attempting to hold insert, if the gap safely allows for that.



[pezter22]

I had a similar situation last week with a PB170. There's really no easy way to do it other than to gently pull the screen bezel at the same time you try to undo the screw. That will place some pressure on screw and enable to turn it a bit. It will take a little time and patience. The plastic holding the standoff will break off anyway, so it's not a horrible situation. It is repairable. Thingaverse had 3D files of the standoffs and the hinge supports. They can be found on eBay as well if you don't have a 3D printer.

hinge support

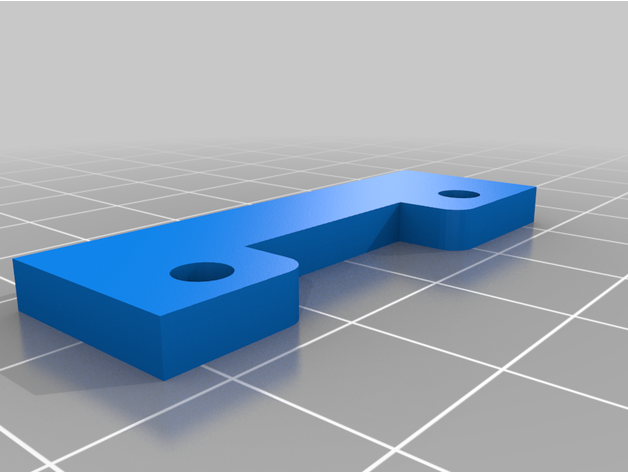

Modified Powerbook 100 Series Hinge by cadenya_

This Does Not Compute made a video on fixing a PB 145b and used this design file but modified it, but didn't include the modified file in his description. After more than a week without him responding to my question if he could add his modified one, I learned TinkerCad and made a modified one...

www.thingiverse.com

standoff

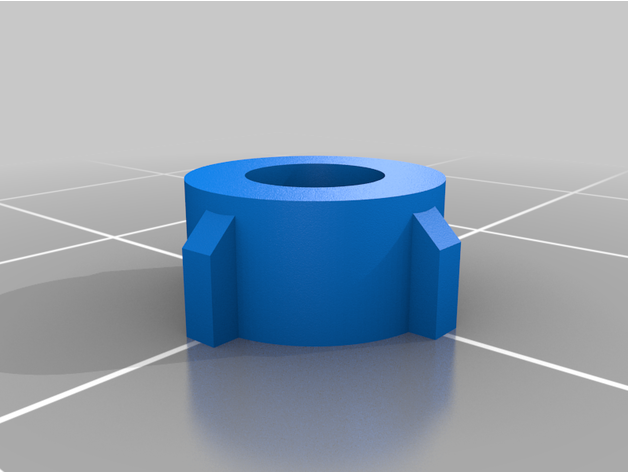

Apple PowerBook 100 Series Stand-off / Small by polymatt

Designed this little guy to replace the plastic stand-offs for the Apple PowerBook 100 series line. This is the small one and part of a series that includes the larger stand-off and the screw covers.

www.thingiverse.com
