I just got a 3400c and had a question about compatibility with CD-ROM Drives. My 3400c did not come with a CD-ROM Drive and I am having trouble finding a 3400c specific CD-ROM drive- maybe I am missing something. Are CD-ROM drives (internal) from a G3 or other powerbook models that are compatible with the 3400c? Thanks!
Powerbook 3400c CD-ROM Drive
- Thread starter mdwgw
- Start date
3lectr1cPPC
Well-known member
The only one that's compatible would be the one for the G3 "Kanga"/first generation and they're rare as hen's teeth. You're probably just going to have to wait for a 3400 drive to show up. There should be a surplus compared to other parts given how many of them are now falling victim to PRAM battery leaks - plenty of units with bad motherboards but otherwise good parts to be parted out.
MacUp72
Well-known member
I just disassembled the old drive of my junk 3400c, the CD seems very different from the 1400, more squarish
68kmla.org
PowerBook 1400 CD ROM
G'day all, I have 4x PowerBook 1400 CD ROM drives and neither works. What options do I have and does anyone know direct replacement for those? Any suggestions to get them working again? Cheers AP
68kmla.org
Last edited:
3lectr1cPPC
Well-known member
I believe it’s a Sanyo mechanism inside.
3lectr1cPPC
Well-known member
Do you mean what mechanism could go inside the drive to replace a failed one?
I believe @techknight knows - I'll ask him on discord where he's far more active these days.
I believe @techknight knows - I'll ask him on discord where he's far more active these days.
3lectr1cPPC
Well-known member
alright got a reply

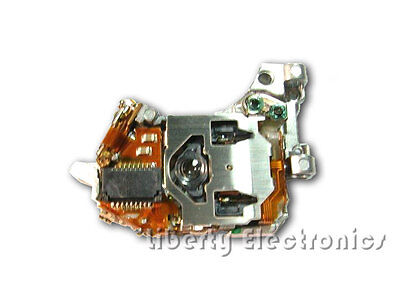

this *should* be the correct laser assembly, if it is indeed a sanyo drive, and if the laser being bad is the issue
NEW OPTICAL LASER LENS PICKUP - model: SF-U3000 | eBay
Find many great new & used options and get the best deals for NEW OPTICAL LASER LENS PICKUP - model: SF-U3000 at the best online prices at eBay! Free shipping for many products!
www.ebay.com
MacUp72
Well-known member
I repaired the catch mechanism of the CD drive, the drive wasn't staying in the chassis anymore, just popping out.
the little spring loaded lever would not return to a straight 90 degree position and therefore not catch the chassis.
you must disassemble the parts to get to the bottom and clean off all the ancient grease..after that it snaps right into position again.
ok, one prob down..inserted in the 3400c again it is beeing recognized but it has a hard time reading a cd, it starts, stops, starts..
maybe an adjustment problem?
edit:
I found a culprit, a little spring inside has deattached from somewhere
the little spring loaded lever would not return to a straight 90 degree position and therefore not catch the chassis.
you must disassemble the parts to get to the bottom and clean off all the ancient grease..after that it snaps right into position again.
ok, one prob down..inserted in the 3400c again it is beeing recognized but it has a hard time reading a cd, it starts, stops, starts..
maybe an adjustment problem?
edit:
I found a culprit, a little spring inside has deattached from somewhere
Last edited:
