Micron Xceed power cable extension for SE/30

[moocowpig]

I have a Micron Xceed card with internal grayscale and one of these cards https://68kmla.org/bb/index.php?threads/fs-se-30-ethernet-accelerator-adapter-combo-cards.42856/

I'd like to use them together and I believe it's possible, but the 10-pin power cable that goes into the video card doesn't reach when it's raised up on the adapter. Is there a cable I can buy to extend it? What have others done to make this work?



[Nixontheknight]

I have a Micron Xceed card with internal grayscale and one of these cards https://68kmla.org/bb/index.php?threads/fs-se-30-ethernet-accelerator-adapter-combo-cards.42856/

I'd like to use them together and I believe it's possible, but the 10-pin power cable that goes into the video card doesn't reach when it's raised up on the adapter. Is there a cable I can buy to extend it? What have others done to make this work?

I bet there's a way to get it to work with an ATX extension cable, but don't quote me on that



[Phipli]

You can make your own, it's not too difficult or expensive.

Molex 2 To 24 Pin Way 4.2mm Multi Plug Connector Sets Male + Female + Terminal | eBay

Find many great new & used options and get the best deals for Molex 2 To 24 Pin Way 4.2mm Multi Plug Connector Sets Male + Female + Terminal at the best online prices at eBay! Free delivery for many products.

www.ebay.co.uk



[zigzagjoe]

You can make your own, it's not too difficult or expensive.

Molex 2 To 24 Pin Way 4.2mm Multi Plug Connector Sets Male + Female + Terminal | eBay

Find many great new & used options and get the best deals for Molex 2 To 24 Pin Way 4.2mm Multi Plug Connector Sets Male + Female + Terminal at the best online prices at eBay! Free delivery for many products.

www.ebay.co.uk

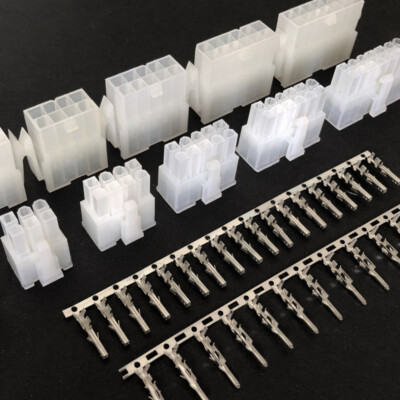

I've made a couple of little extensions like this for myself. I took the approach of extending the harness to the logic board rather than the connection to the card. This is a decent set for connectors and and pins you need: https://www.amazon.com/gp/product/B078H8F2YQ



Note, the cheap crimpers (this type) don't do these well without a bit of finangling and don't even think about trying to do it with pliers. I did manage it with the cheap crimpers in the end but it was fiddly and took a *lot* of time to get a decent result.

Alternatively, as @Nixontheknight said you can take an ATX extension and hack off half of it to use as an extension, but beware that your +5v voltage does not drop too low. You may need to adjust your PSU if using an original.



[s_pupp]

The crimpers that work best are ratcheting crimpers. Not willing to spend $400+ on a Molex brand ratcheting crimper, I bought an inexpensive ratcheting crimper (This one). It took some practice to get decent results, and I still get some failed crimps, but overall I'm satisfied with it. I just buy double the number of terminals I need (they're cheap) to account for the inevitable failures. I could not get satisfactory results with a non-ratcheting crimper - even the Molex branded one.



[Brooklyn]

I’ve had this same problem and made my own extension with a pair of affordable crimpers.



[K Trueno]

I cut a 24 Pin ATX Power Extension Cable in half after making sure the pin-out was 1:1, worked as expected:

https://www.amazon.ca/gp/product/B000FL60AI



[Juror22]

I cut a 24 Pin ATX Power Extension Cable in half after making sure the pin-out was 1:1, worked as expected:

https://www.amazon.ca/gp/product/B000FL60AI

Now THAT's bloody clever!



[nottomhanks]

YES!! That ATX power extension trick works FANTASTIC!! Thanks so much for that tip!!
