Help! BlueSCSI v2 wifi - cannot connect to WIFI am I doing something wrong?

[AlpineRaven]

G'day all,
I am trying to set up BlueSCSI v2 WIFI in my Macintosh LC475.

Specs; LC475 running on full 68040 25mhz, 32mb RAM, full VRAM, nothing else is connected.
BlueSCSI - SanDisk 64gb ExFAT formatted (even tried formatting the SD card in PC, and using SD Card App as well) its not SD card at fault.

Main Drive has those files in the SD Card;

bluescsi.ini
HD20_512 2048mb76.hda
log.txt
NE4.hda

Fresh Installed MacOS7.6.1, along with updated Open Transport 1.3
Also installed DaynaPort 7.7.2 - only selected DaynaPort SCSI.

TCP/IP can see Alternate Ethernet but no IP addresses shows up, as soon I go to AppleTalk to select Alternate Ethernet - it comes up with an error saying that there is no network.

I checked the log.txt - it doesn't show if the wifi that is loaded or not.

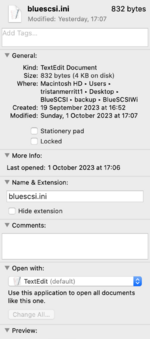

Please see 2 attached screenshots and see if I am doing something wrong?

Cheers
AP



[Phipli]

Daft question, but just looking at your images, and not knowing the product at all, but the file looks like it is called "bluescsi" instead of "bluescsi.ini"?



[AlpineRaven]

Daft question, but just looking at your images, and not knowing the product at all, but the file looks like it is called "bluescsi" instead of "bluescsi.ini"?

I know it doesnt show in finder (I don't know why) but when you go get info it does show full extension.
Cheers
AP



[joshc]

Someone here may know, but you will probably have better luck using their official support channels.

index - BlueSCSI v2 Documentation

BlueSCSI v2 Documentation.

bluescsi.com

Looking for Support?​

• Try the Troubleshooting guide first.
• Discord
• TinkerDifferent
• GitHub Discussions



[zefrenchtoon]

I installed my pico w during the week-end on my 475 and all went well.

Did you upgraded the bluescsi firmware to get access to wifi beta support ?

WiFi DaynaPORT - BlueSCSI v2 Documentation

BlueSCSI v2 Documentation.

bluescsi.com

This is the first thing you have to do. The wifi support is only in this beta release.
Then you should have some more lines in your log file.



It is very funny to use Netscape 2 on a LC 475 to browse frogfind in 2023



[Udo.Keller]

G'day all,
I am trying to set up BlueSCSI v2 WIFI in my Macintosh LC475.

Specs; LC475 running on full 68040 25mhz, 32mb RAM, full VRAM, nothing else is connected.
BlueSCSI - SanDisk 64gb ExFAT formatted (even tried formatting the SD card in PC, and using SD Card App as well) its not SD card at fault.

Main Drive has those files in the SD Card;

bluescsi.ini
HD20_512 2048mb76.hda
log.txt
NE4.hda

Fresh Installed MacOS7.6.1, along with updated Open Transport 1.3
Also installed DaynaPort 7.7.2 - only selected DaynaPort SCSI.

TCP/IP can see Alternate Ethernet but no IP addresses shows up, as soon I go to AppleTalk to select Alternate Ethernet - it comes up with an error saying that there is no network.

I checked the log.txt - it doesn't show if the wifi that is loaded or not.

Please see 2 attached screenshots and see if I am doing something wrong?

Cheers
AP
View attachment 62963View attachment 62964

The stock firmware does not support WiFi yet. AFAIK, you have to install a different firmware which is in beta right now.



[zefrenchtoon]

FYI, I did use the "USB method" to do the firmware upgrade. I have read that some people had pb with the SD card method.

USB method is very very easy ...
