Guess who has a new apple iii board!
Guess who also still has the same damn issue of no video!
lol, at least I have a bunch more ROMs now!
Man these things hate me.
The timing logic on this one is also broken
The problem with this one is straight timing logic to start.
Back to the beginning with a different board to see if it was something that simple

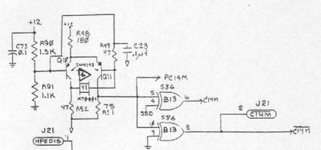

14.3mhz clock signial works fine going to B13 on all pins it's expected.
It's not LEAVING b13 though.
SSD/5SD/55D whatever it is is deadline flat. It's dead on D11, D10, A11 so it's not just B13 having the issue.
The problem I'm running into, what in gods name is SSD/5SD/55D
Any ideas?
Edit: God bless the reference manual
S5D is the following:
Location Pin
But all of those seem to be input, not production. hmm.
If anyone has anything I'm always open
Guess who also still has the same damn issue of no video!
lol, at least I have a bunch more ROMs now!
Man these things hate me.
The timing logic on this one is also broken
The problem with this one is straight timing logic to start.
Back to the beginning with a different board to see if it was something that simple
14.3mhz clock signial works fine going to B13 on all pins it's expected.
It's not LEAVING b13 though.
SSD/5SD/55D whatever it is is deadline flat. It's dead on D11, D10, A11 so it's not just B13 having the issue.
The problem I'm running into, what in gods name is SSD/5SD/55D
Any ideas?
Edit: God bless the reference manual
S5D is the following:
Location Pin
| Location | Pin |
| A9 | 13 |
| D10 | 4 |
| D10 | 5 |
| D10 | 6 |
| D10 | 7 |
| D11 | 4 |
| D11 | 13 |
| A11 | 1 |
| A11 | 4 |
But all of those seem to be input, not production. hmm.
If anyone has anything I'm always open
