Not Mac: Orchid Kelvin 64 MPEG VBA video card

[olePigeon]

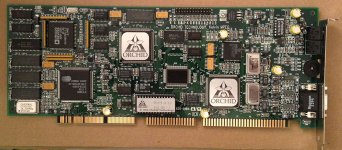

Found this puppy at the local recycler. Or rather, my brother found it. Orchid Kelvin 64 MPEG VBA/VESA video card. 2MB memory and has an MPEG decoder on it. Not too shabby for a DOS video card.

I'll be using this puppy in my DOS gaming rig.



[Byrd]

That card will be a cracker, make sure it is coupled with your finest 486 DX4-100! From vague memory is the Tseng Labs ET4000/6000 the fastest VLB card you can get?



[Unknown_K]

Fastest depends on color depth and resolution. My fastest VLB were high end S3 cards with 4MB of RAM, fastest at 24 bit was probably a Matrox card that is a mile long.



[CelGen]

Holy crap that's a crowded VESA card.

I see two additional VRAM pads. Try soldering in more and see if you can upgrade to 4mb.



[Trash80toHP_Mini]

Cool!



[olePigeon]

Mine is already 2MB. The one with the open sockets is the 1MB version, which you can upgrade to 2MB. Unfortunately you can't get 4MB on this card.

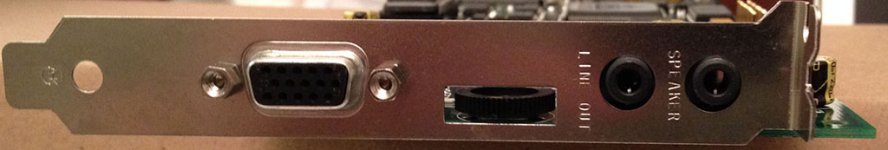

Here's mine:



[olePigeon]

It does have a feature connector. Supposedly I can expand the function of the video card.



[CelGen]

Usually you attached an MPEG card through the VFC however that's integrated. You can however attach a tuner, frame grabber or perhaps budget in for a VFX1.



[Unknown_K]

The VESA connector was used mostly for overlay cards (CAD, video capture) to dump video to the primary card.
