Who has a iMac G3 with either a Sonnet Harmoni processor upgrade and or a item that uses the Mezzanine slot?

Angelgreat

Well-known member
I would want to know if someone has or had use them. Feel free to post your experiences. Please add a photo if possible.

Last edited:

jeremywork

Well-known member
I haven't grabbed a Rev A/B, but I have stored pictures away as the auctions have gone by. Here's what I've seen:

---

First, there's the Griffin iPort, which uses the physical slot opening but not actually the mezzanine interface. The PCB runs cables to the standard 8-pin mini-din serial connector for the infrared port and the DB15 port for the internal CRT to provide both interfaces externally.


---

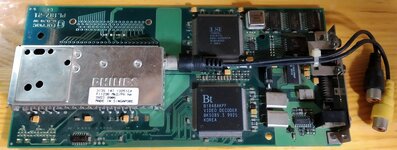

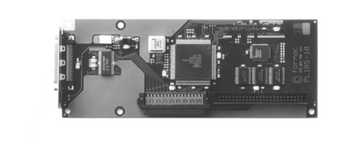

Then, there's the iPro RAID, which was delivered in two versions; one with an ultrawide SCSI controller and another which also bundled analogue video (/tuner?) input. (only one picture of this available) This card does use the mezzanine interface. I actually have one of the SCSI-only models in box, despite not yet finding an iMac to put it in...

s-l1600 (11).jpg
Capture-d’écran-2016-08-27-à-17.01.02.pngiPro RAID TV.jpg

---

And finally (that I know of) the 3dfx Game Wizard, which adds Voodoo II acceleration to the onboard display.

---

And also, the Sonnet Harmoni G3 500 or 600MHz, which occupies neither the Mezzanine interface nor the slot opening when installed.
IMG_1249.jpg.bd09e90a6e0d43698affe3ea274ce256.jpgIMG_1251.jpg.bc6ed421652e1581d65e8f7764cfca9d.jpgs-l1600 (3).jpg
s-l1600 (4).jpg

Last edited:

LaPorta

Well-known member
Thanks for the photo: my iMac is happily secured in its original box, it would have been an ordeal to take out and photograph.


CC_333

Well-known member
I so want one of those Harmonis!

Alas, all are too expensive for me (I thought $400 for one back in 2005 was expensive, but in retrospect, that price is actually quite affordable, because these often go for 2x more!).
