Tashtari's ADB Tools (also a plea for rare devices!)

tashtari

Well-known member
Wow, the ADB I/O's manual seems like it contains a full specification of the ADB protocol... it's unfortunate that only the HTML version of it seems to have been archived, and that without any of the images. Grrr.


Phipli

Well-known member
Wow, the ADB I/O's manual seems like it contains a full specification of the ADB protocol... it's unfortunate that only the HTML version of it seems to have been archived, and that without any of the images. Grrr.
There is loads of stuff here :


Filter by ".hqx" or whatever.


Here are the pdfs I could get plus some C libs.


Attachments

  • ADB_IO_C-Interfaces_CW.sit.hqx
    217 KB · Views: 3
  • AN-2_Connecting_LEDs.pdf
    95.6 KB · Views: 4
  • ADB_IO_Press_Release.pdf
    653.7 KB · Views: 5
  • Audience_Opinion_Meter.pdf
    160.3 KB · Views: 4
  • ADB_IO_manual.pdf.hqx
    1.7 MB · Views: 5
  • ADB_IO_manual.pdf
    1.2 MB · Views: 8
  • 00591A.PDF
    77.5 KB · Views: 5
  • Lab_1_Schematic.PDF
    23.4 KB · Views: 5

aladds

Well-known member
I found an ad with a render of the box in it :)

Edit: And I see that the PDFs have _loads_ of pictures too!


Attachments

  • Bzzzzzz.png
    942 KB · Views: 13
Last edited:

tashtari

Well-known member
Shoot, I thought I'd looked for that. Anyway, great! The appendix on the ADB format makes it quite straightforward to program a PIC to speak this language... can't promise anything, but I could definitely see implementing this in the not-too-distant future.


Phipli

Well-known member
Shoot, I thought I'd looked for that. Anyway, great! The appendix on the ADB format makes it quite straightforward to program a PIC to speak this language... can't promise anything, but I could definitely see implementing this in the not-too-distant future.

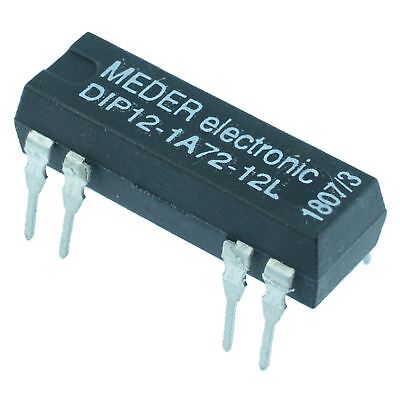

I suspect they used this style (voltage/brand/model tbc) of relay :


It would be nice to put some open collector outputs on it so we could drive interesting loads.... but I'm getting carried away.


jeremywork

Well-known member
Without splitting it open, there are some steps that you can perform (or that anyone with any ADB device can perform) to get some first-pass information on it:
  • Download and run ADB Parser on a mac with the device plugged in
  • Identify the device on the list
    • Your ADB keyboard and mouse should be the devices at addresses 2 and 3, and the host should be at 0, so the ADB device under test should be whatever's left over if there are no other devices plugged into your ADB ports
  • Click the device in the list and note the "Original Address", "Original Handler", "Current Handler", and "Current Address"
  • Click "Talk" on the radio buttons in the left panel and enter "1" for the register, then click "Send Command" and note the data received below (if any)
  • Do the same with "2" for the register
Doing this will help me start to compile a list of devices and their IDs and benefit the general cause of Apple history. =)
Thanks for this, I'll test other ADB devices when I come across them.

My Rainbow Sentinel Eve with the DiaQuest sticker pictured upthread does not appear in the list even when downstream devices are recognized.

The Sentinel Eve3 pictured beneath it:
Original Address 01
Original Handler 34
Current Handler 34
Current Address 1
Talk "1" no response

Talk "2" reports consistently as many times as the command is sent until the ADB Reinit button is pressed, the computer is rebooted, or the device is hotplugged. Here are ten consecutive outputs:

770077474C6A
3E003E800000
5D005D61D4BE
120012AC7048
39003985A4F6
080008B6B864
9300932B1C92
870087370C8A
1B001BA37C42
EB00EBD33C22


tashtari

Well-known member
Talk "2" reports consistently as many times as the command is sent until the ADB Reinit button is pressed, the computer is rebooted, or the device is hotplugged.
Hmm. When you say it "reports consistently", do you mean it gives the same sequence of outputs every time starting when reset/rebooted? If so, does it ever appear to loop?

In any case, thank you, I've added the Sentinel Eve3 to the ADB devices list on TashNotes.

Also, aiee, don't hotplug unless you have more electrical engineering knowledge than I do (which isn't difficult) and know it to be safer than I think it is...


jeremywork

Well-known member
Hmm. When you say it "reports consistently", do you mean it gives the same sequence of outputs every time starting when reset/rebooted? If so, does it ever appear to loop?
Sorry, it reports the same value every time I click send command, up until I click ADB Reinit/etc

In about 20 tries I didn’t catch a loop, though the first and third hex pairs always seem to match; second pair always 00.
In any case, thank you, I've added the Sentinel Eve3 to the ADB devices list on TashNotes.
You’re welcome!
I’ll be on the lookout for others I can help populate.

Also, aiee, don't hotplug unless you have more electrical engineering knowledge than I do (which isn't difficult) and know it to be safer than I think it is...

Yeah… no additional engineering knowledge, but I’ve used a couple analog ADB KVMs for years now without any unrecoverable incidents. One even has a switch to disconnect and reconnect the ADB without removing the cable, which resolves the occasional non-responsive keyboard after switching. It might still be a bad idea, but I felt comfortable enough given the hundreds of uneventful handoffs my hardware had already been through. Whenever I do hotplug an interface which probably isn’t designed for it, I try to be cognizant to push it in swiftly without causing the connection to pulse on the way in. Fwiw, probably still just as dicey.

Last edited:

jeremywork

Well-known member
Interesting. I might have to slap the analyzer on mine to see if the host sends it something that seeds the value or something...

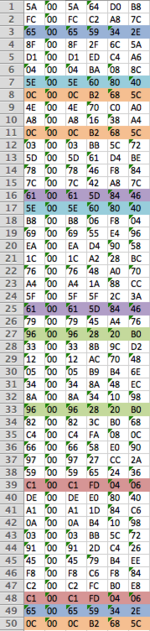

I was thinking it could produce a sequence of rolling codes, but I took more readings and found repeats. They don't appear to be in a pattern though, maybe it just chooses from a list of valid codes and the software is set to expect a different one each launch?

(same Eve3 as above)
Screen Shot 2022-11-11 at 9.17.54 PM.png


aladds

Well-known member
It would be nice to put some open collector outputs on it so we could drive interesting loads.... but I'm getting carried away.
Whilst my PIC programming skills aren’t quite as developed, I’d happily design an interface PCB to include things like this. We can take this off line for now to ensure we don’t bombard this topic with noise, though :)


Phipli

Well-known member
My dad has this - I think it is a PostScript licence dongle for his printer. I can ask him to test it if it is of interest. He still uses it on a Beige G3.



tashtari

Well-known member
@aladds @Phipli

Well, I went and did it. =D We can move discussion pertinent to the project over to the new thread.



tashtari

Well-known member
Also, news: @demik has extremely generously offered to send me a LaCie FM Radio so I can try to decipher its protocol. Huzzah! \o/


tashtari

Well-known member
Another ADB tool for your tooling pleasure:


This allows the user to prototype the behavior of an ADB device in Python (or other language on a host system) or imitate the behavior of an ADB device in order to stimulate a driver on the Mac.


Jockelill

Well-known member
Does this qualify :)? It’s a Nubus image grabber (color) from neotech, but it also uses the ADB bus to control the box.


tashtari

Well-known member
Update: I've been able to RE the protocols used by the PowerKey PK-1 and PowerKey Rebound! and uploaded writeups on them to TashNotes at the aforementioned links. Look for this functionality showing up in one of my projects before too long, hopefully...

Profuse thanks to @olePigeon for lending them to me!
