Hi all! I have a Macintosh II which I obtained quite a couple of years ago. When I tried to power it up the other day using the jump start trick, something inside the power supply exploded developing an extreme smell.

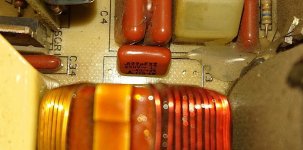

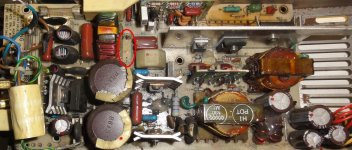

I now decided to recap everything, starting with the PSU. The blown component obviously is a RIFA metalized paper cap next to that green and red wired coil near the two large 820µF 200V caps. I am unable to identify its values, as the debris which should have the values printed on it just seems to be missing. The only information I can recover is PME271N and 40/085/56.
Is there a schematic for the Apple 699-0389 PSU or could someone please tell me the values of that blown RIFA cap?
