Cube replacement optical drive - missing driver. Please help!

[Treeblopez]

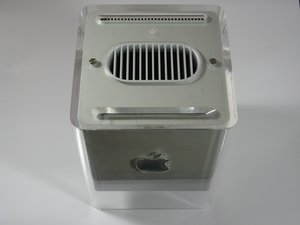

I've installed a Sony NEC Optiarc AD-7640A drive inside a G4 Cube (using a 3D-printed bracket). I didn't give much thought to drivers when I bought the thing.

Neither Tiger or Leopard can recognise it. And I can't find any Apple drivers online.

It's one of these, so was running on later Intel Macs. Is this a lost cause? I've a feeling this was a rookie error.

Sony NEC Optiarc AD-7640A superdrive AD-7640A

www.thebookyard.com



[Treeblopez]

It's among the compatible drives in this iFixit list:

SOLVED: What optical drives from other Mac devices can be used in replacement? - Power Mac G4 Cube

To replace the original CDROM drive, you need an : ATA/IDE slot-in Superdrive, 12.7mm high. Power Mac G4 Cube Optical Drive Replacement Some compatible models are : Matshita UJ-815-B Matshita UJ-85J Matshita UJ-845-C, UJ-845-CA (RPC1) Matshita UJ-875-B (RPC1) Sony Optiarc AD-5630A (RPC1) Sony...

www.ifixit.com



[François]

Are you sure it’s not a master/slave problem? I have replaced the optical drive in a few cubes and don’t recall ever needing a driver.

Does the drive appear in System Profiler?



[Treeblopez]

Are you sure it’s not a master/slave problem?

Ah, it could be. I think master/slave needs to be reversed?

It doesn't seem to be in System Profiler.



[François]

As by default the hard drive is set to master, the optical drive should be set to slave (or ID 1). There should be a jumper on the little adapter board between the ribbon cable and the optical drive.



[Treeblopez]

Thanks François. The optical drive adapter (green) doesn't seem to have a jumper but the one connect to the SSD hard drive (red) does. Any suggestions? Should I swap them round?



[Treeblopez]

Actually I was looking at the wrong end. Jumper here, I think, but I don't know how to interpret.



[François]

csel means cable select, the master/slave configuration is determined by the cable, but it’s not supported in the Cube. Lo (low) is master and Hi (high) is slave, or is it the other way around?!



[François]

Turns out I have the exact same interface board: just remove the jumper, so 2-3 will be open and in the Hi configuration that would be slave!



[Treeblopez]

So I've done that - and there's *some* progress. It now appears in System Profiler. But there's a DVD inside it - it happily swallowed it and I can see that the drive has power - but it hasn't mounted it.



[Treeblopez]

ID=0 (hard drive); ID=1 IDVD) but "no mountable media inserted". I'm not sure where the eject is now to force it out.



[Treeblopez]

After a couple of reboots it mounted it! But it's not happy for some reason...



[Treeblopez]

Thanks very much, François - you solved my fundamental problem. It's half working. The Mac can see it and they're talking to each other. It ejected a disc quite comfortably when I rebooted and held down the mouse button. It's mounted a disc once. But it isn't reading it. And now I can't get it to accept a disc at all (I tried a different disc).

So there's a hardware problem somewhere? Either the drive is dodgy or I didn't install it properly - but if it ejects discs normally I'd expect it to accept them normally (ie it's not misaligned). Frustrating...
