Compact Mac Repair Guide

RickNel

Well-known member
Thanks! As a newcomer to the forum, I was not aware of this very useful compendium of tips, especially for the analog elements... It joins my PDF library.

Rick



jdmoser

Active member
Oh this is awesome :D I just posted about flaky video on my Mac Plus, and according to this it may only need a simple resoldering.



!Beaker

Member
Uoops, I got a

   404 - Not Found

Darn, as I need to start some work on the analog board.

Could someone help please?



MOS8_030

Well-known member
try a google search for classicmac2.pdf.

Also look for this: Macintosh Repair and Upgrade Secrets.pdf

:)



SE30_Neal

Well-known member
Does anyone have a component list for the se/30 analogue board and power supply, i.e. capacitor list? I believe its the same as the se.

thanks Neal


Last edited by a moderator:

Jinnai

Well-known member
There are at least three different power supplies - by Astec, Apple, and Sony. I have the doc for the Sony CR-44:

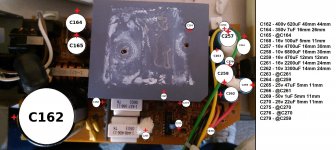

Sony SE30 PSU cap list.jpg
