Apple iigs setup
- Thread starter Papichulo
- Start date
Andy
Well-known member
You cannot use a Mac monitor as they work on different horizontal frequencies. Shame on Apple for using the same connector.
Any composite TV should work, I don't see why the apple composite monitor wouldn't. As long as you use the composite video port on the IIgs. It will be lower resolution then using the IIgs RGB monitor, but should work in a pinch.
There are some adapters around if you have a VGA monitor that supports 15Khz. Though I've never used them. There is also a video card that supports HDMI. That's basically recreating the entire video circuity. Never tried it though. https://pcweenies.com/2019/11/17/vidhd-modern-video-output-for-the-apple-iigs/
Any composite TV should work, I don't see why the apple composite monitor wouldn't. As long as you use the composite video port on the IIgs. It will be lower resolution then using the IIgs RGB monitor, but should work in a pinch.
There are some adapters around if you have a VGA monitor that supports 15Khz. Though I've never used them. There is also a video card that supports HDMI. That's basically recreating the entire video circuity. Never tried it though. https://pcweenies.com/2019/11/17/vidhd-modern-video-output-for-the-apple-iigs/
Andy
Well-known member
There's an overview of modern video options here too http://www.apple2faq.com/apple2faq/apple-iigs-modern-video-options/
magnusfalkirk
Well-known member
Another option is an Apple IIGS to SCART cable, SCART to HDMI converter with an HDMI cable and then a flat screen monitor that has HDMI input. Not necessarily a cheap solution but I think it works very well with my GS.
volvo242gt
Well-known member
Yeah, the A2M6014 is kinda scarce these days. That's why I went with the A2M6016 monochrome monitor for mine. Will work well for the time being until I find a decent A2M6014 that's not priced to the moon.
This might work, if you want to use a VGA monitor...
www.reactivemicro.com
-J
This might work, if you want to use a VGA monitor...

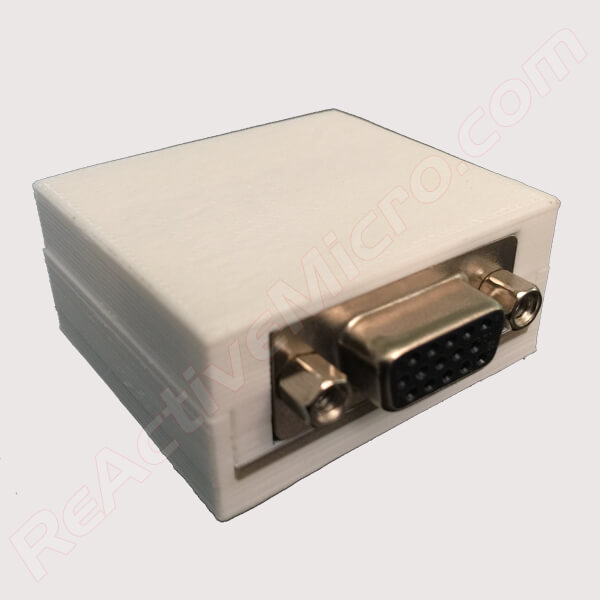

Apple IIGS VGA Adapter from Manila Gear
This is the Apple IIGS VGA Adapter WITH ENCLOSURE from Manila Gear. ReActiveMicro is now an Authorized Dealer and Partner with Manila Gear in an effort to help bring more great products to the Apple
www.reactivemicro.com
-J
Skate323k137
Well-known member
I concur, when I don't want my desk crushing PVM out, or original IIgs monitor, I use a SCART cable and retrotink hdmi converter with scanline emulation enabled. It looks really nice display wise though aesthetics are another matter.
Skate323k137
Well-known member
Definitely my go to VGA upscaler still, shame they are still so expensive
ironacetop
New member
If you don't mind the basic question, how do you connect the IIGS to OSSC... ? Is it a DB15 to SCART cable or something else ?
Skate323k137
Well-known member
Yes, you can get SCART cables for the IIGS which would be the normal way to connect to any upscaler with a SCART input.
ironacetop
New member
Cool... Since OSSC is suffering from shortages, would a SCART + one of those "cheapos" SCART to HDMI from Amazon (such as this one) would work or does it need to be special (maybe has to support 240p 15KHz input) ?
ironacetop
New member
Ah, I had forgotten about those adapters... Thanks !
Skate323k137
Well-known member
I like the Retrotink 2x SCART, it works well enough for the IIgs for me and I like the scanline option.
Works well with 240P input, I also use it with an Amiga 600.
RetroTink 2X SCART - 480p Upscaler for RGB SCART Digital Video
Byte Knight
Well-known member
Thanks for the free advertising!
I still prefer the original IIgs monitor - love the form factor.
Skate323k137
Well-known member
Same honestly, but mine takes ages to warm up even after I recapped and worked on it. Eventually I'll find a new tube but for now this works. The retrotink is also nice for the Amiga 600 I have, since a PVM would fold that desk in half
An Extron RGB-HDMI 300(A) is usable in a pinch for IIgs video, which is at the extreme low end of the range of frequencies the RGB-HDMI 300 will handle. The best I was able to do was to display the IIgs video with some artifacts at the edge of the display, but it could be used to verify the IIgs video output is working. See this discussion Good & reasonable HDMI scaler: Extron RGB-HDMI 300(A)
Skate323k137
Well-known member
Whoa, I hadn't even thought about that. I use a lot of Extron and Key Digital stuff, and a lot of it does support 240p even if undocumented. I don't know if I have the cable chain on hand to try my IIgs with the RGB-HDMI 300 I have, but this is awesome info.
works great on my set up as well. here's a good link. http://www.apple2faq.com/apple2faq/iigs-to-hdmi-using-an-extron-rgb-hdmi-300a/
