Apple-branded "Fast Ethernet 10/100BaseT card" (PCI) "SA0025"

aperezbios

Well-known member
Does anyone know which Apple driver/extension this card uses? The SA0025 is apparently just a re-badged ZNYX NETBLASTER ZX345. Both boards are silk-screned with "SA0025" on the PCB, and appear identical, besides the sticker on the 21140 chip itself.

For the record, the Apple 10/100 PCI card is actually just a DEC 21140-based Ethernet card:

The following is taken verbatim from a 1998 Apple document, labeled "033-1014-A",

Update: About the Optional 10/100Base-T Ethernet Card

Some Macintosh computers come with an optional 10/100 Base-T Ethernet card installed. This
update provides details about the card that are not covered in the computer’s manual.

10/100Base-T Ethernet Card Specifications

  • Open Transport: Mac OS 7.5.2 or later, AppleShare, AppleTalk, NetWare for Macintosh, TCP/IP
  • Connector: RJ-45 (for 10Base-T and 100Base-T)
  • Media, 10Base-T: Cat 3, 4, or 5 UTP on 2 pairs up to 100 meters (m)
  • Media, 100Base-T: Cat 5 UTP on 2 pairs up to 100 m
  • Bus interface: PCI revision 2.0 and 2.1, share interrupt A
  • Channel speeds: IEEE Auto Negotiation of 10Base-T and 100Base-T
  • Communications: IEEE 802.3i 10Base-T; IEEE 802.3u 100Base-T
  • Controllers: DECchip 21140, 32-bit internal processor per channel
  • Power: 1.2 amperes (A) @ 5 volts ( V ) typical
Here's a photo of the Apple-branded card:
...and here's the original, ZNYX-branded card:


Attachments

  • 1633147347099.png
    6.1 MB · Views: 19
Last edited:

olePigeon

Well-known member
I AltaVistaed the card, and it apparently uses the "Apple Enet" extension ... but it has to be the correct Apple Enet extension from the Beige G3 or later. I suspect so long as it is installed while you install the OS, anything OS 8 or later will likely install the correct driver for the card.


aperezbios

Well-known member
I can confirm that the "Apple Enet" extension, version 2.4.2, works properly with this Apple-branded card, which is actually a re-badged ZNYX NetBlaster ZX345. I've attached a self-extracting, macbinary-encoded archive, containing just the necessary Extension, to this post.

According to a nearly 21-year-old MacInTouch post, version 2.4.1 of this extension had a memory leak. The Apple ENET Extension version 2.3 may also work with this card, but I haven't yet validated it.

Apple Enet extension version 2.4.2 originally was distributed as part of an image, published on Apple's FTP site, Apple_Ethernet_Update_2.0.smi.bin


Attachments

  • Apple Enet 2.4.2.sea.bin
    211.1 KB · Views: 12

LCARS

Well-known member
I recently received the same Apple-branded card and when installed in my beige G3 running 9.2.1 with the 2.4.2 Enet extension, the machine will not boot past the happy mac screen.

I reset the PRAM but still no boot. I have yet to move the card around to different PCI slots but before I do, does a no-boot situation like that lend itself to a problem with the card itself?


Swabbie

Member
if I could be permitted to hijack this thread a bit - has anyone on here gotten this card working on a 6400/6500/Tam? I still haven’t been able to get Ethernet on my 6500 (see previous post here). The card discussed here is for sale on eBay for $30.

one main problem unrelated to the card, Ethernet is missing from my system under tcpip. Ppp and AppleTalk are my only options & I don’t know why. I loaded the os with the Ethernet card installed But maybe because the card isn’t liked by my system it didn’t trigger the needed code to be installed when I installed the OS?

Any help here would be much appreciated.

Last edited:

Powerbase

Well-known member
if I could be permitted to hijack this thread a bit - has anyone on here gotten this card working on a 6400/6500/Tam? I still haven’t been able to get Ethernet on my 6500 (see previous post here). The card discussed here is for sale on eBay for $30.

one main problem unrelated to the card, Ethernet is missing from my system under tcpip. Ppp and AppleTalk are my only options & I don’t know why. I loaded the os with the Ethernet card installed But maybe because the card isn’t liked by my system it didn’t trigger the needed code to be installed when I installed the OS?

Any help here would be much appreciated.
It most likely didnt install the extensions because it wasnt present when you installed the OS.

I think a program called TomeViewer is used to extract them from the installer.


ried

Well-known member
Yep. Same with the DVD Player app, etc. Only installs support for what's physically present when the installer is run, unless you choose a custom install at that time.


Swabbie

Member
It most likely didnt install the extensions because it wasnt present when you installed the OS.

I think a program called TomeViewer is used to extract them from the installer.
You're correct about the Tome extractor. I used it to get usb extensions installed when I installed an OS without the card installed. Problem is it looks like all the Ethernet extensions are still there but I’d need a definitive list of what to look for from
Someone to confirm.


croissantking

Well-known member
Would anyone who has the Apple branded 10/100 ethernet card discussed above be kind enough to help me? I would like to see a screenshot of the information shown about it in Apple System Profiler under Devices and Volumes.

For example here’s a 3rd-party ethernet card of mine.

I am keen to know the name, vendor ID and model.


Mk.558

Well-known member
Turns out I can actually get one more use out of this thing. You know that principle where the thing you like the least is the thing that lasts the longest?

Picture 10.pngPicture 9.pngPicture 8.png

Not really satisfied with the ASP report, I checked with TattleTech. Also tried checking with Rhapsody 5.6, but that doesn't have an equivalent for ASP. Considered installing OS X on it, but too much time for something that probably won't give any other info than what we have here.

Picture 11.png

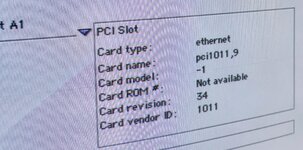

TattleTech report is below. In AppleTalk and TCP/IP control panel, it's reported as "Ethernet slot A1", when I got it, it was in "Ethernet slot B1". If you scrap off the label, it shows this:



Attachments

  • Report.txt
    206.8 KB · Views: 18
Last edited:

joevt

Well-known member
For Mac OS X, ioreg and lspci from my pciutils fork. Also, my pcitree.sh script.
For classic Mac OS, Display Name Registry and my DumpNameRegistry.
For Open Firmware, the dump-device-tree command and my lspci for Open Firmware script.


Attachments

  • DumpNameRegistry.zip
    521.2 KB · Views: 0
  • Display Name Registry.zip
    74.4 KB · Views: 0
  • lspciForOpenFirmware.zip
    18.5 KB · Views: 0

croissantking

Well-known member
Turns out I can actually get one more use out of this thing. You know that principle where the thing you like the least is the thing that lasts the longest?

View attachment 85222View attachment 85221View attachment 85220

Not really satisfied with the ASP report, I checked with TattleTech. Also tried checking with Rhapsody 5.6, but that doesn't have an equivalent for ASP. Considered installing OS X on it, but too much time for something that probably won't give any other info than what we have here.

View attachment 85223

TattleTech report is below. In AppleTalk and TCP/IP control panel, it's reported as "Ethernet slot A1", when I got it, it was in "Ethernet slot B1". If you scrap off the label, it shows this:

View attachment 85225
Oh thank you, much appreciated!

You don’t like this card?

I’m surprised to see your SA0025’s card name and vendor are the same as my D-Link card (1011 is DEC corp). I assumed that it would be different as the Apple Enet extension ignores my card. So it must be checking another way.


NJRoadfan

Well-known member
Its likely MAC locked, looking for the Apple OUI (MAC starts with 00:05:02 in the example above). Looking at OUI registration dates, it could also be 00:10:FA too.

Last edited:

joevt

Well-known member
Might be interesting to compare vendor/product IDs with subsystem vendor and subsystem product IDs.


Mk.558

Well-known member
Oh it's just a Server G3 MT that is about ready to keel over:

* Capacitors in the PSU are dying
* All the HDDs were dead when I got it
* The RAM failed one by one
* The CD-ROM drive was unplugged on arrival
* Battery bomb damage

It did its job though, but also made me earn it. Heard the power button likes to break on these, this one is just fine.
