PowerMac - universal output support cable pinout/circuit diagram available?

[Trash80toHP_Mini]

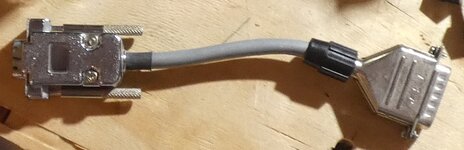

I've got a "magical" video cable that supports any resolution chosen in the Monitors Control Panel from my 6360 or VidCard. No VGA adapter is required for a change! ISTR using it with Beige G3 and a couple of others.

Has anyone got links handy for building them?



[Big Ben]

Here you have the whole details from the technote: https://developer.apple.com/library/archive/technotes/hw/hw_30.html

I had mixes results between different cables and monitors, the video part is always the same but the sense pins are what will make your cable works with multisync or not.



[Trash80toHP_Mini]

Thanks much for the link! This cable supports every resolution I've thrown at it without sense line adaptation. I've packed it up with my portable desoldering/soldering equipment. It's custom made, both ends of the cable are off the shelf connectors. If I can't figure it out with a multi-meter, I'll pop off the easier end and slide the cable sleeve off for a look-see.



Heading out of town until about the 27th, nice project for visiting the GRLF.



[joevt]

More on Apple Sense Codes at:
https://tinkerdifferent.com/threads/documentation-for-db15-to-vga-adapters.318/post-21288
The VGA option doesn't use a diode - just a line from sense 1 to sense 2.



[joevt]

My fork of the DingusPPC emulator has a function MonitorSenseLines in applesense.cpp that can calculate and draw all the Apple Sense Code possibilities (anything possible with just diodes or wires).
