Powerbook 100 IO Door?

[twelvetone12]

Is there anybody that has a powerbook 100 willing to help me get the measurements of the I/O door on the back? Mine is missing and I would like to put to good use a brand new 3d printer that is laying on my desk... I saw there is one for the PB 180 but I could not find it for the 100 (which is different), so I think drawing it should not be "too" difficult.
Thanks!



[3lectr1cPPC]

What specifically do you need? Mine has the IO door, but the latch for it is quite complicated.
You can see images on my website here: https://macdat.net/electric_lounge/collection/mac_collection/powerbook100.html



[GRudolf94]

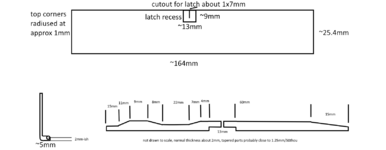

Excuse the shoddy drawing and measurements, I don't have my calipers here, all I have is a dimly lit kitchen table and a ruler. The port cover appears to be symmetrical so keep that in mind. You can measure the powerbook itself and refine the dimensions, peg depth and placement, etc. Not sure if you'll want to replicate the original latch mechanism (which is just a slider with a catch and a plastic spring) but this should all get you close enough to just have to finish the details yourself. The sides where the pegs go are raised walls, the bottom part of the flap is about the same 2mm thickness as the rest.



[twelvetone12]

Yes thanks both for the photos and measurements, maybe I can mock-up a simple version with a simpler latch design. I'm going to try to make a "template" with the measurements and see how it fits on the machine.



[GRudolf94]

The Apple latch is fairly simple, as far as these things go. That said, you could probably glue/melt a small magnet to the inside of the lid where it could catch, um, on the headphone jack maybe? And then just make a fingernail indent/hold at the top.



[macuserman]

If it was me and my machine, I'd scoop this up and be done with it: https://www.ebay.com/itm/175801499788



[twelvetone12]

Yes but it removes the fun of making it myself
besides that is for the 180 and is different from the 100 (there are already stl models for the 180)



[GRudolf94]

Also £30 for a freaking door? That's whole PowerBook prices IMHO.



[3lectr1cPPC]

Yeah I’d never pay that much. They break so easily. All my early PowerBooks have the door missing. My 170 did actually come with one, but the latch was broken. Then I barely put the lightest force on it one time by mistake, it was basically no force at all. And it broke one of the tiny mounting pegs. The 100’s door seems better attached.



[GRudolf94]

100s seem stouter as a whole, at least when it comes to the plastics. My "daily" 180 is the least crumbly brick-series I've encountered yet, and feels nowhere near as solid as my 100s
