Found 2 cards in a lot. One says Paintboard LI and the other says Pickles 24 BUG. Any ideas on these? Thanks!
-
Hello MLAers! We've re-enabled auto-approval for accounts. If you are still waiting on account approval, please check this thread for more information.
2 Odd Nubus Video Cards
- Thread starter hyperneogeo
- Start date
Stick'em in slots and fire up TattleTech, the NuBus/PDS report tells all the DeclROM's secrets. You should get basic function from them using the drivers in the Declaration ROM. Pickles 23 BUG is a new one on me, looks like a nice bit of VRAM on board. DeclROM spelunking time!
RasterOps Paintboard Li looks to be a pretty decent 19" 24bit board.
http://lowendmac.com/video/ropspbli.html
RasterOps Paintboard Li looks to be a pretty decent 19" 24bit board.
http://lowendmac.com/video/ropspbli.html
Interesting, yeah I'll plug them in soon. thanks!

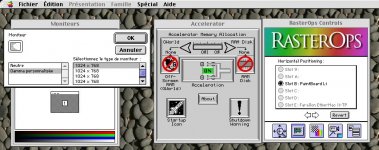

The first is a RasterOps Paintboard Li :
Provide Quickdraw acceleration but not so fast...

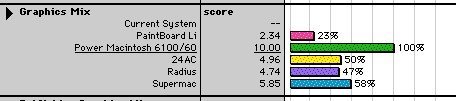

I have done a quick graphic test last month to compare it with some other cards in my IIfx : Apple 24AC, Radius 24XP and a SuperMac Spectrum/24 Series V :
(this MacBench version is based on a 6100 perf.) :
Anyway it's a good card for a large screen.
I don't know the second one.
Provide Quickdraw acceleration but not so fast...
I have done a quick graphic test last month to compare it with some other cards in my IIfx : Apple 24AC, Radius 24XP and a SuperMac Spectrum/24 Series V :
(this MacBench version is based on a 6100 perf.) :
Anyway it's a good card for a large screen.
I don't know the second one.
Last edited by a moderator:
The second card with all the VRAM may be a
Radius Direct Color 16/24
I found a reference and photo here: http://www.retrotechnology.com/herbs_stuff/m_nubus.html
Radius Direct Color 16/24
I found a reference and photo here: http://www.retrotechnology.com/herbs_stuff/m_nubus.html
If it were that or any other Radius card it would have "Radius" printed on the (missing on BUG)) three big ASICs near the DA-15 connector as is the case with the RasterOps logo on their custom chips. The BUG logo on the three custom ICs would make that the name of the company, not the name of the card. The three IC on the three cards (Radius included) ought to be RAMDAC for R,G & B Digital to Analog Conversion.
TattleTech will tell the tale.
TattleTech will tell the tale.
The second card is a BUG Pickles-24 (I have one of these and a DeskStudio Pro JPEG card for AV Power Macintosh, but sadly no software for either).
BUG were/are a high-end video outfit based in Japan. They made a number of cards for Macs in the 80s and early 90s but it seems they've left the market. I haven't seen the software for any of their older products available, but feel free to use your favorite machine translator on the history section of their website. The Apple-related stuff is mostly around section 4.
BUG were/are a high-end video outfit based in Japan. They made a number of cards for Macs in the 80s and early 90s but it seems they've left the market. I haven't seen the software for any of their older products available, but feel free to use your favorite machine translator on the history section of their website. The Apple-related stuff is mostly around section 4.
Under "BUG" it says "Sapporo Japan" at the top of the card. Looks like the card model was Mac-VC Rev. B as several of the PLDs are labeled "PAL - MacVC"
The D => A converter for the display (RAMDAC) is the largish BT chip near the rear plate. The three BUG chips before that do something else. Perhaps sling the data out of memory to the RAMDAC at the appropriate time(s).
The D => A converter for the display (RAMDAC) is the largish BT chip near the rear plate. The three BUG chips before that do something else. Perhaps sling the data out of memory to the RAMDAC at the appropriate time(s).
