I immediately removed the terrible battery connector.
It needs recapping, it found there is leaking already but strangely it is working, HD spins with not weird noises
MacOS system 8.0.
-
Updated 2023-07-12: Hello, Guest! Welcome back, and be sure to check out this follow-up post about our outage a week or so ago.
Macintosh LC 475
- Thread starter ironborn65
- Start date
I immediately removed the terrible battery connector.
It needs recapping, it found there is leaking already but strangely it is working, HD spins with not weird noises
MacOS system 8.0.
MrFahrenheit
Well-known member
Nice! These LC475/Quadra 605 are my favorite 68k Mac’s. Enjoy!
pfuentes69
Well-known member
Nice machine. It's the one I use the most. Always on my desk.
I guess that thing connected to the battery holder is a coin cell wrapped in duct tape, right?
I guess that thing connected to the battery holder is a coin cell wrapped in duct tape, right?
cheesestraws
Well-known member
Agreed with both @MrFahrenheit and @pfuentes69—the 475 is probably one of the best 68k macs for hobby purposes. It's robust, compact, easy to work on, not rare and pretty fast. I love the LC case(s) and form factor.
Jockelill
Well-known member
Love the 475! I have two of them, works great! You can trim it to 33Mhz by modifying a few resistors:
"There are four resistor pads used in this modification. Surface mount (SMT) resistors are placed in these pads to pull "low" or "high". The pads are in sets of two, so you need to have a resistor on one of the first two and one of the second two. The resistors are either 300k Ohms (301) or 4.7k Ohms (472). They are the "0805" surface mount package.
R22 (low) R21(high) R25(low) R24(high)
301 --- 301 --- low, low 20MHz
--- 472 301 --- high, low 25MHz
301 --- --- 472 low, high 33MHz
--- 472 --- 472 high, high 40MHz
If you monitor Pin 6 of U17, you will get the following:
low, low 9.982MHz so 19.964MHz
high, low 12.377MHz so 24.754MHz
low, high 16.425MHz so 32.85MHz
high, high 19.964MHz so 39.928MHz"
40MHz creates other issues, so don't bother
.
"There are four resistor pads used in this modification. Surface mount (SMT) resistors are placed in these pads to pull "low" or "high". The pads are in sets of two, so you need to have a resistor on one of the first two and one of the second two. The resistors are either 300k Ohms (301) or 4.7k Ohms (472). They are the "0805" surface mount package.
R22 (low) R21(high) R25(low) R24(high)
301 --- 301 --- low, low 20MHz
--- 472 301 --- high, low 25MHz
301 --- --- 472 low, high 33MHz
--- 472 --- 472 high, high 40MHz
If you monitor Pin 6 of U17, you will get the following:
low, low 9.982MHz so 19.964MHz
high, low 12.377MHz so 24.754MHz
low, high 16.425MHz so 32.85MHz
high, high 19.964MHz so 39.928MHz"
40MHz creates other issues, so don't bother
.
Phipli
Well-known member
If you overclock, you can try adding a simple heatsink. Use silicone thermal glue to stick something like a 40x40 heatsink on the processor.
The fan in mine was really loud so I took it out, turned it upside down, peeled back the label and put a small amount (like, two tiny drops) of sewing machine silicone oil in the hub... quiet as a mouse now
The fan in mine was really loud so I took it out, turned it upside down, peeled back the label and put a small amount (like, two tiny drops) of sewing machine silicone oil in the hub... quiet as a mouse now
Aluminum Heat Sink Cooling LED Power IC Transistor Different Sizes | eBay
Made of high quality Aluminum, good thermal conductivity. The fins increase the area of the board and thus provide for greater heat transfer. Material: Aluminum. Reduce the risk of hardware failure due to overheating.
www.ebay.co.uk
High Quality Thermal Conductive Heatsink Glue Adhesive Compound 10 G Tube C116 for sale online | eBay
Find many great new & used options and get the best deals for High Quality Thermal Conductive Heatsink Glue Adhesive Compound 10 G Tube C116 at the best online prices at eBay! Free delivery for many products!
www.ebay.co.uk
Treadmill silicone oil lubricant 10ml. Handy dispensing bottle with applicator | eBay
Treadmill Silicone Oil. The very highest grade and compatible with all treadmill systems. Professional grade direct to the trade and the public.
www.ebay.co.uk
Last edited:
pfuentes69
Well-known member
I did some mods too to my LC475,,,
- Full 68040
- OC to 33MHz
- VRAM upgraded to 1MB
- Quieter fan and fan speed controller
- PDS Ethernet card
- RASCSI
It's so fun to tinker with this machine!
- Full 68040
- OC to 33MHz
- VRAM upgraded to 1MB
- Quieter fan and fan speed controller
- PDS Ethernet card
- RASCSI
It's so fun to tinker with this machine!
ironborn65
Well-known member
thanks you all mates.
I was not aware of the resistor swap to OC, I'll have some fun with it.
(I did it for my 3 LC III though with success)
I'll add a PSD Ethernet card.
The PSU is ok but I was wondering if to replace the capacitors to extend his life
MacOS 8 is not something I like, but I'll keep it
I was not aware of the resistor swap to OC, I'll have some fun with it.
(I did it for my 3 LC III though with success)
I'll add a PSD Ethernet card.
The PSU is ok but I was wondering if to replace the capacitors to extend his life
MacOS 8 is not something I like, but I'll keep it
ironborn65
Well-known member
I'm asking you here because I do not fine a suitable thread in the forums.
Which liquid do you use to clear motherboards with ultrasonic cleaners?
Which liquid do you use to clear motherboards with ultrasonic cleaners?
Phipli
Well-known member
Attachments
pfuentes69
Well-known member
I had to recap a couple of these and I'd say it's a must at some point.
Did you open it to see how's inside? (specially on the bottom side of the PCB, where the cap goo trends to go)
ironborn65
Well-known member
I read it's not recommended to use IPA with ultrasonic cleaners, "vapours could ignite" if in a non properly ventilated room...
ironborn65
Well-known member
yes, they do not look domed and I see not sign of leaking ... but I'll to the "upgrade"
I believe this is correct, IPA is not the correct stuff to use in an ultrasonic cleaner. However, I don't know exactly what is as I don't have one.
ironborn65
Well-known member
Recapped, I run out of tantalum caps, it's ok tough
Successfully overclocked to 33MHz
Are these heat sinks enough?
which VRAM SIMMS should I look for for an upgrade?
I have 832x624 256 colors
Successfully overclocked to 33MHz
Are these heat sinks enough?
which VRAM SIMMS should I look for for an upgrade?
I have 832x624 256 colors
Phipli
Well-known member
Recapped, I run out of tantalum caps, it's ok tough
Successfully overclocked to 33MHz
Are these heat sinks enough?
which VRAM SIMMS should I look for for an upgrade?
I have 832x624 256 colors
View attachment 45646
They're cute, but I'd try to find a bigger heatsink! With heatsinks it is all about surface area.
For VRAM I'd start by browsing eBay, but Siliconinsider makes very pretty new ones if you're interested.
cheesestraws
Well-known member
Jockelill
Well-known member
I’ve used these:

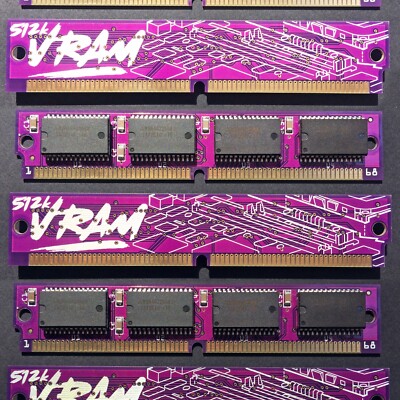

1pcs PurpleRAM new 68pin SIMM 512k 100/80ns VRAM memory Apple Macintosh computer | eBay
1pcs PurpleRAM newly made 68-pin SIMM 512k 100ns, 80ns or 70ns VRAM for Apple Macintosh computers. Only recent Macintosh models, like the latest Quadras and the Power Macintosh 6100/7100/8100 PDS card are designed to use 80ns modules.
www.ebay.com
