Greenspring Computers Quad Serial Model 1280 NuBus card

[David Cook]

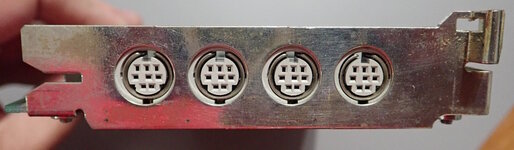

Picked up this interesting card in a misc lot.



I assume quad serial?



It's a long shot, but does anyone have drivers? I can upload a copy of the ROM if anyone needs it.

- David



[robin-fo]

Wow, another serial card! Maybe the card works without drivers, maybe you could try the QuadraLink or CSI Hurdler drivers.



[joevt]

It uses two of the same serial communications controllers that all Macs use so I guess each port can do AppleTalk? Maybe the ROM has drivers that are similar to the built-in serial port drivers? It doesn't look like it can do DMA?

AM26LS30 - Dual Differential (EIA-422-A)/ Quad Single-Ended (EIA-423-A) Line Drivers
AM26LS32 - Quad Differential Line Receivers
MC74F02N - Quad 2-input NOR GATE Fast Schottky TTL
74F74N - Dual D-Type Positive Edge-Triggered Flip-Flop
MC74F367N - Hex Buffer/Driver 4-bit Plus 2-bit, Noninverting 3-State
SN74F521 - 8-Bit Identity/Magnitude Comparators (P=Q) with Enable
MC74F534N - Octal D-Type Flip-Flop with 3-State Outputs
SN74LS640N - Octal Bus Transceiver
TMS27C128-1JL - CMOS UV EPROM 128K (16K x 8-Bit) 150ns DIP-28
CRL 8817L 115-0002 - Filters?
U1, U2 - ?
U14 - ?



[David Cook]

Here's a copy of the ROM.



[David Cook]

Here is the QuadraLink v2.2 ROM dump.



[joevt]

Can you post Slot Manager info?
The SlotsDump app at #12 is one way to do that.
Maybe there's some other apps that can get the same info.

I wonder if SlotsDump can be changed to dump info from one of those .bin rom dumps. I'm not sure what the relationship is between what SlotsDump dumps and the contents of the .bin rom dumps (I haven't looked at the code in 20 years and I've never built a declaration ROM).



[joevt]

Here's a copy of the ROM.

Looks like 8KiB duplicated twice.



[David Cook]

Here is some information of TattleTech

· Nubus/PDS Slot# = $0C
Pseudo Nubus Slot# = 1
Board Name = QuadSerial Four Port Serial Card
Board ID = 468
Vendor ID = GreenSpring Computers
Serial# =
Revision Level = 1.0
Part# = 1280
Functional Resources :
+ Device sResource Name = Communication_RS232_1280Serial_1280Serial
- Device Category = 6 (Communication)
- Device Type = 2 (RS232)
- Device Software Interface Type = 263
- Device Hardware Type = 256
- Device sResource# = $80
- Driver Number = -50
+ Device sResource Name = Communication_RS232_Apple_1280Serial__
- Device Category = 6 (Communication)
- Device Type = 2 (RS232)
- Device Software Interface Type = 1
- Device Hardware Type = 256
- Device sResource# = $81
- Driver Number = [NA]
+ Device sResource Name = Communication_RS232_Apple_1280Serial__
- Device Category = 6 (Communication)
- Device Type = 6 (RS422)
- Device Software Interface Type = 1
- Device Hardware Type = 256
- Device sResource# = $82
- Driver Number = [NA]

I was unable to unzip your SlotsDump file on my IIci using StuffItExpander 5.5 (circa 1999). If you upload a .sit or binhex version of the SlotsDump application, I'd be happy to run it.

- David



[joevt]

I was unable to unzip your SlotsDump file on my IIci using StuffItExpander 5.5 (circa 1999). If you upload a .sit or binhex version of the SlotsDump application, I'd be happy to run it.

What computer do you use to respond to posts in this forum? Any Mac running Mac OS X should be able to unzip it.



[David Cook]

Any Mac running Mac OS X should be able to unzip it.

My modern computers are all PCs. Anything after MacOS 8.1 is dead to me. : )



[joevt]

Is sitx too new? I have Stuffit 7 and Compact Pro 1.5 (I don't remember the correct extension for Compact Pro archives).
There's a Slots app in the NuBus/Slot Manager folder of the August 1998 Tool Chest Edition of the Apple Developer CD series.
https://www.savagetaylor.com/2024/01/31/apples-developer-cd-series/



[David Cook]



[olePigeon]

Found an eBay auction for a "working pull." I messaged the seller on the off chance they might still have the computer. Maybe copy the software. I really doubt it'll pan out, but who knows.



[David Cook]

I messaged the seller on the off chance they might still have the computer

That would be awesome



[olePigeon]

Never heard back from the eBay seller.
