Hello,
Had theses around, figured I could make a guide on how to convert them to use with old Macs.

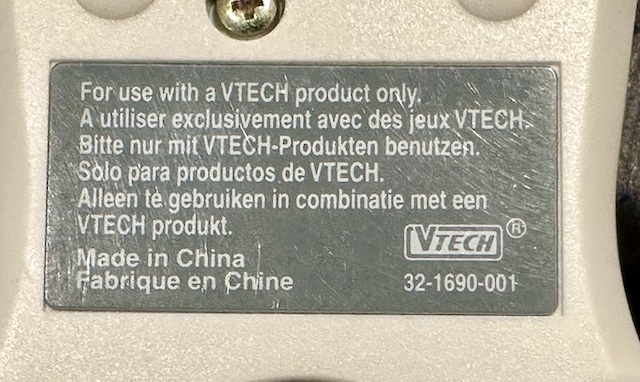

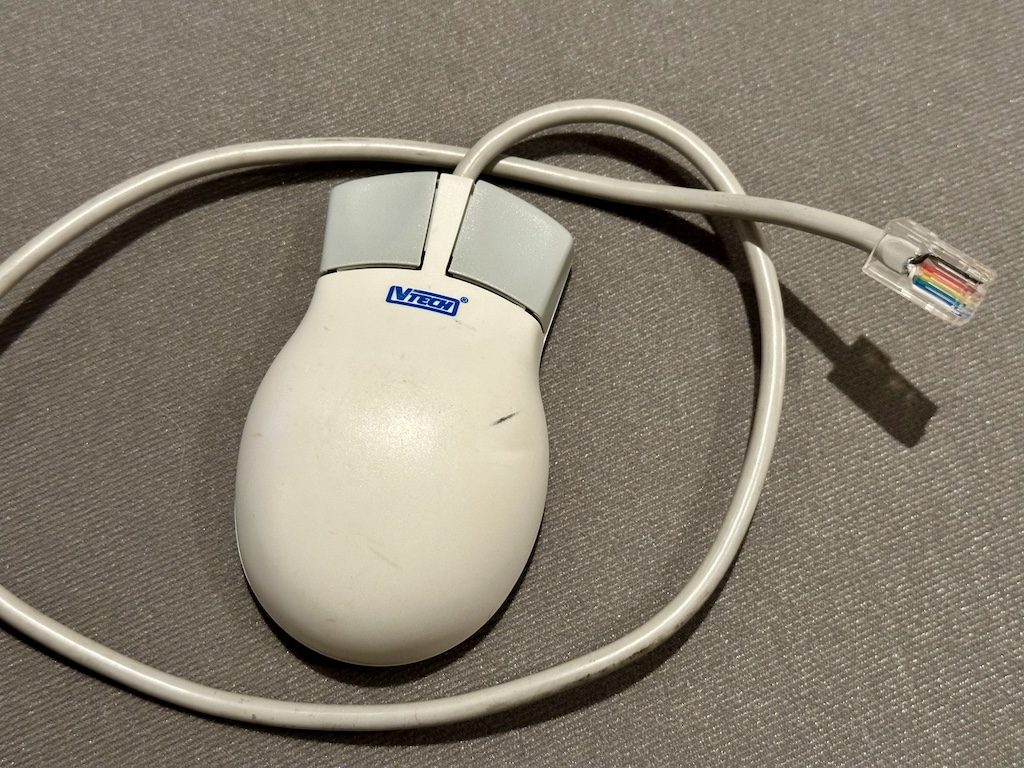

VTech is a company that did Apple II clones, and later education computers. This mouse was designed to be used with such computers, but the circuity is compatible with early Macs. It's a fully passive Quadrature Mouse.
The wiring needs to be done as shown in the table below
Boom done
Had theses around, figured I could make a guide on how to convert them to use with old Macs.
VTech is a company that did Apple II clones, and later education computers. This mouse was designed to be used with such computers, but the circuity is compatible with early Macs. It's a fully passive Quadrature Mouse.
The wiring needs to be done as shown in the table below
| Macintosh Pin | VTech Pin | Signal |
|---|---|---|
| 1 | White (click ground) | Ground |
| 2 | Do not connect | +5V |
| 3 | Brown (X+Y ground) | Ground |
| 4 | Red | X2 |
| 5 | Blue | X1 |
| 6 | Unused | Unused |
| 7 | Orange + Green | Click |
| 8 | Black | Y2 |
| 9 | Yellow | Y1 |

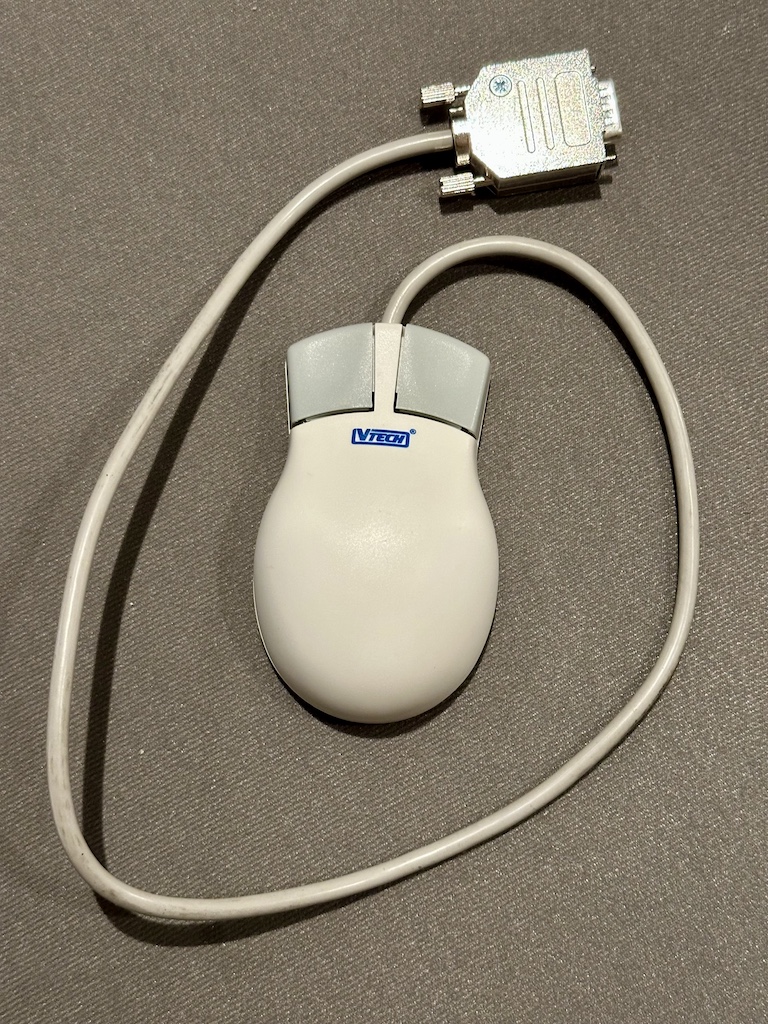

Boom done
!
