Looking for Formac ProMedia 40 ROM Rip

[Phipli]

Is the "ViRGE Integrated 3D Accelerator" document sufficient for creating emulation for this PCI device? If so, then you could add emulation for this in DingusPPC, and log how the registers get accessed.

It... should be? But I'm not smart enough to even know where to start with such a thing.



[Phipli]

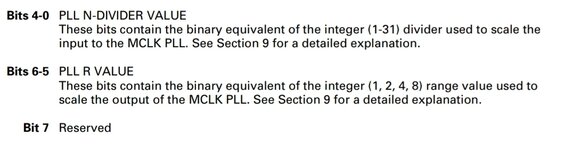

So is this the area we are interested in?

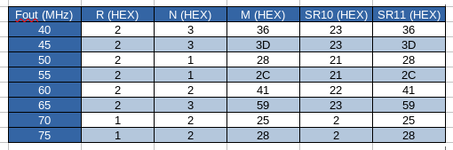

Is this loading 0x24 into SR10 and 0x41 into SR11?

That would be R=1, N=4 and M=65, which I don't think make sense.

Fout would be (67/(6*1))*14.31818 = 160MHz

Which is way too high.
