Jasmine Technologies BackPac 40

[David Cook]

I recently purchased a Jasmine BackPac 40, along with a Mac Plus. A very attractive paring!



To install it, you first remove the two bottom screws and the battery cover from the Mac Plus. The clock/pram battery stays in place. The Mac's power switch is flipped to the ON position.

The BackPac has a power plug and flexible tab that mate to the power input and battery cover's tab slot on the back of the Mac Plus.



But wait! Before you snap it into place, the inside front of the BackPac has a little storage area for the screws and battery cover you removed, so that you don't misplace them. Cool, huh!



The torx wrench is missing from mine, as is the cover to the dip switches to set the SCSI id. In fact, for reasons I discovered later, the SCSI ID selector is not visible on mine.

To complete the installation, thumb screws with coin slots attach the bottom of the BackPac to the screw holes at the bottom of the Mac Plus. Then, a flexible short SCSI connector attaches to the external SCSI port on the Mac Plus.



The BackPac is firmly attached. The plastic is really high quality, as is the design and attention to detail. Someone very skilled and caring made this.

And, best of all, it still works! When you flip the power switch on the BackPac, it powers up both the drive and the Mac Plus.

INSIDE

To look inside the BackPac, you must first remove it from the computer. Then, fully withdraw the thumb screws and two flat head (wood?) screws. The case can then be popped open with a spudger.



A couple of things caught my eye. Why the big controller board? What's with the electrical tape on the power input?



Looking more closely, the hard drive is split in twain! The controller board is usually attached to the bottom of a drive. A colorful ribbon cable connects them.



This is not the original 40 MB hard drive. Someone upgraded it. Maybe the electrical tape on the power input was needed when a part needed to be moved to make way for the hard drive controller board?

In fact, the seller was kind enough to include the original 40MB drive. This is thin enough to fit on the left side of the BackPac without needing to be split. The SCSI ID pins of the original drive are accessible through the case opening.



Although this makes sense, did someone at Jasmine really think ahead to design the right side of the case to attach a split controller board? Maybe the BackPac was originally always going to have a larger drive, but then the smaller drive became available?

Here are the labels of the larger and smaller drives.



Both drives thoughtfully include anti-vibration mounts. This is particularly important to avoid rattling the internals of the Mac Plus.



Here's a close-up of the tape covering the input wires and circuitry. This looks to be the relay that passes power through to the Mac Plus when the BackPac is turned on.

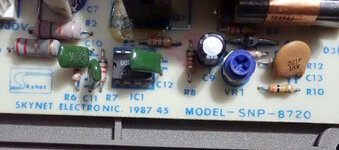

Power supply label. Skynet is real.



The Jasmine BackPac 40 shipped in late 1987. Here is the ad from the December 1987 issue of MacWorld. The price was $1299, which was about half the price of a Mac Plus. Jasmine charged a surcharge for credit cards. So, it could have been $1339, which is $3719 in 2024 dollars.



The Macintosh SE came out in the spring of 1987, but the BackPac was not designed for the SE. It blocked the fan vent. And, the Mac SE had a mounting bracket for an internal drive already.

In later years, Jasmine followed up with a thicker BackPac model with a wider variety of drive capacities and even an internal modem.

- David
